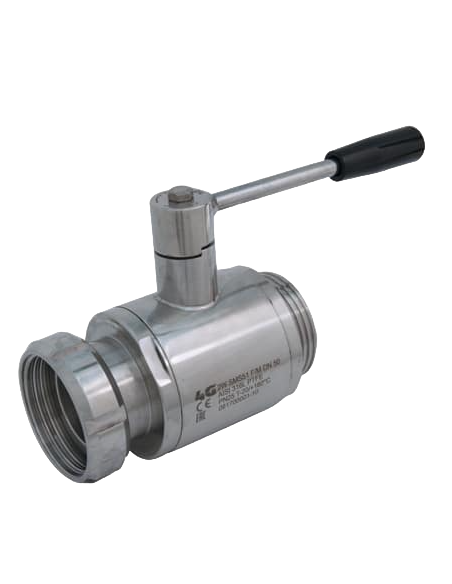

The Ball Valve - 100145 | 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an inox lever drive and SMS female/male connections, ensuring a full flow capacity. Constructed from high-quality materials, Aisi 304L (1.4307) and Aisi 316L (1.4404), it is available in sizes ranging from DN20 to DN100. The valve is equipped with modified virgin P.T.F.E. seals and can operate within a temperature range of -20°C to +170°C. Its polished outer finish enhances durability and appearance. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature requirements, such as PTFE with glass, carbographite, inox, and UHMW polyethylene. The valve also meets M.O.C.A. CE 1935/2004 standards for safety and quality.
Standard (Options)
  • DIN
Connection (Options)
  • SMS
Material (Options)
  • S.S. 304L
  • S.S. 316L
Pressure Rating (Options)
  • PN 100
Seat (Options)
  • PTFE + Fiber Glass
  • PTFE + Carbographite

Datasheet and documents

Description

TWO-way ball valve

Drive: Inox lever

Connection: SMS female/male

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN20 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
