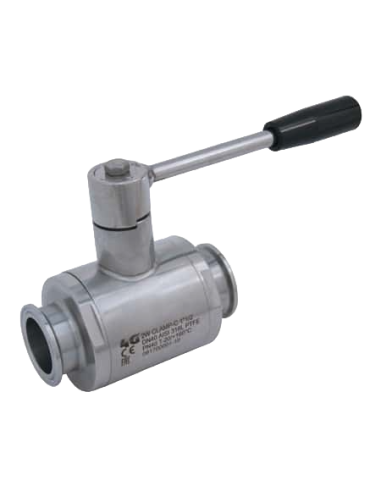

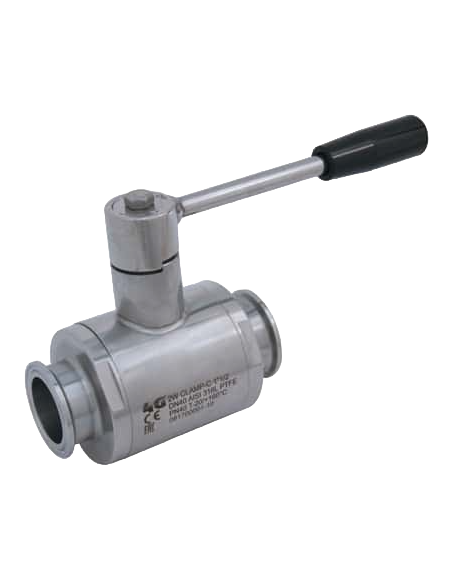

The Ball Valve - 100130 | 4G Ghidini is a versatile two-way ball valve designed for efficient fluid control. It features an inox lever drive and offers multiple connection options compliant with various standards, including DIN 32676 and BS/OD (ASTM A270). The valve supports both full and reduced flow and is constructed from high-quality Aisi 304L and Aisi 316L stainless steel. Available in sizes ranging from 1/2” to 4” and DN10 to DN100, it is equipped with modified virgin P.T.F.E. seals and operates within a temperature range of -20°C to +170°C. The valve boasts a polished outer finish and offers optional features such as an antistatic device compliant with ATEX standards and various seal materials for enhanced performance under different conditions.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • S.S. 304L
  • S.S. 316L
Pressure Rating (Options)
  • PN 100
Seat (Options)
  • PTFE + Fiber Glass
  • PTFE + Carbographite

Datasheet and documents

Description

TWO-way ball valve

Drive: Inox lever

Connection:

  • CLAMP normative DIN 32676 TAB.4 REIHE C For TUBE according to normative BS/OD (ASTM A270)
  • CLAMP normative DIN 32676 TAB.2 REIHE A For TUBE according to normative DIN 11850
  • CLAMP normative DIN 32676 TAB.3 REIHE B For TUBE according to normative ISO 1127

Flow: Full and reduced

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure:

  • from 1/2” to 4”
  • from DN10 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
