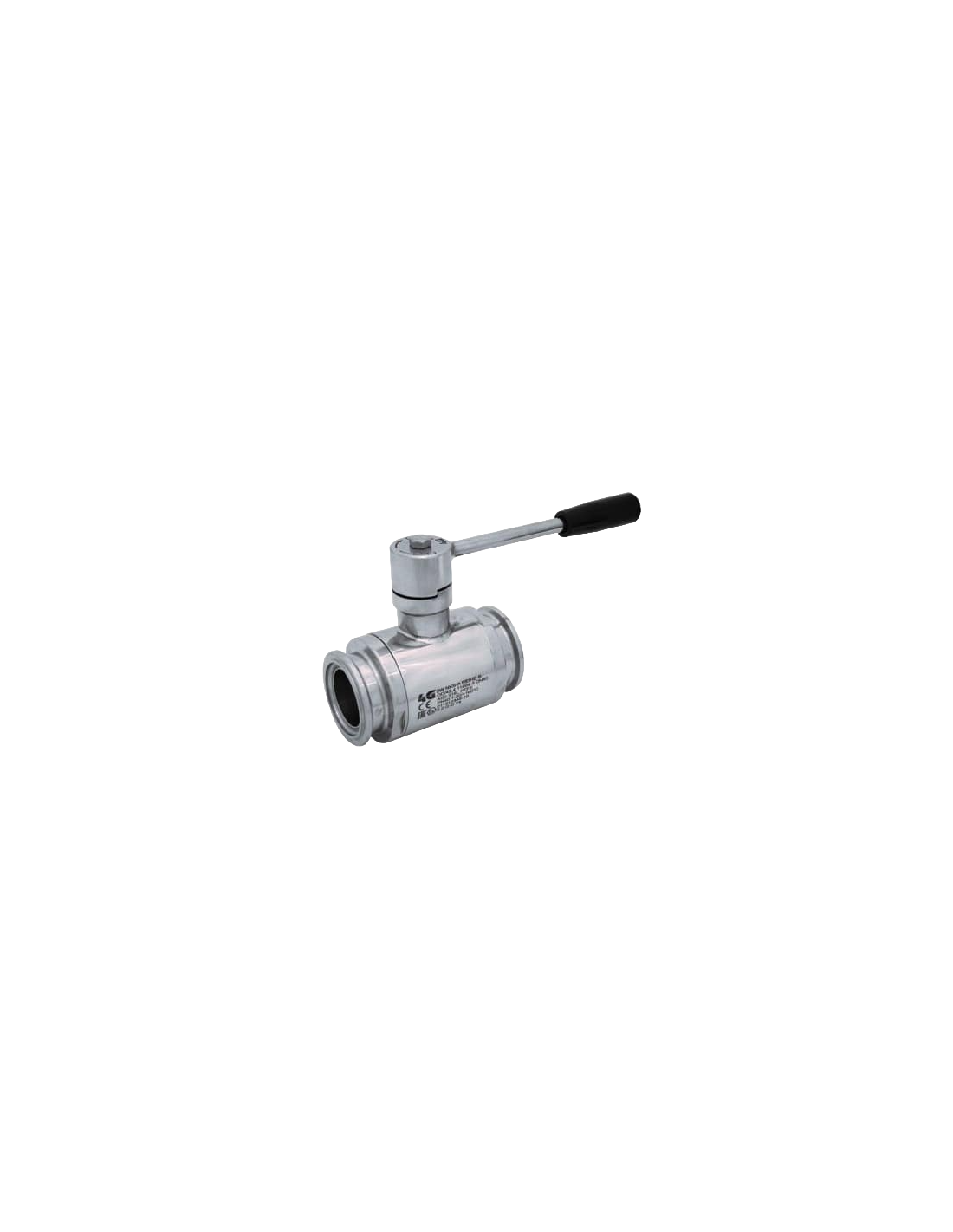

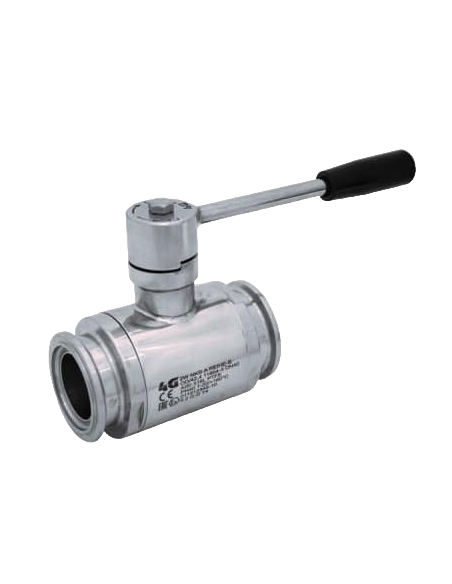

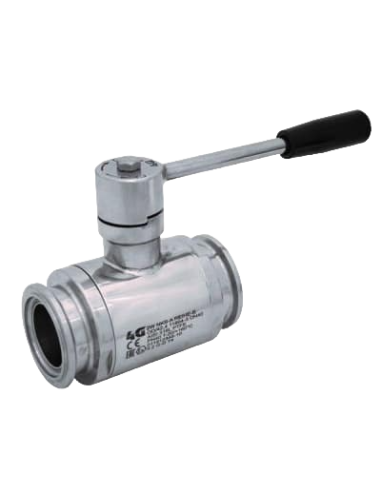

The Ball Valve Aseptic DIN 11864-3 REIHE A/B/C_NKS FORM A FEMALE - 130167 by 4G Ghidini is a two-way "Integral Seal" ball valve designed for aseptic applications. It features an inox lever drive and is compatible with tubes conforming to DIN 11866 standards (A, B, and C series). The valve supports both full and reduced flow and is constructed from AISI 316L stainless steel, ensuring durability and resistance to corrosion. Available in sizes ranging from DN10 to DN100, it operates efficiently within a temperature range of -20°C to +160°C. The valve is equipped with virgin P.T.F.E. seals and has a polished outer finish. Optional features include an antistatic device compliant with ATEX standards and seals made of P.T.F.E. with glass for enhanced temperature resistance up to +170°C.
Standard (Options)
  • DIN
Connection (Options)
  • Aceptik
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve “Integral Seal”

Drive: Inox lever

Connection:

  • ASEPTIK normative DIN 11864-3 REIHE A, NKS Form A. For TUBE according to normative DIN 11866-A (DIN 11850 REIHE 2)
  • ASEPTIK normative DIN 11864-3 REIHE B, NKS Form A. For TUBE according to normative DIN 11866-B (ISO 1127)
  • ASEPTIK normative DIN 11864-3 REIHE C, NKS Form A. For TUBE according to normative DIN 11866-C (ASTM A-270)

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure:

  • from DN10 to DN100
  • from DN10 to DN80

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

P.T.F.E. with glass -20°C+170°C
