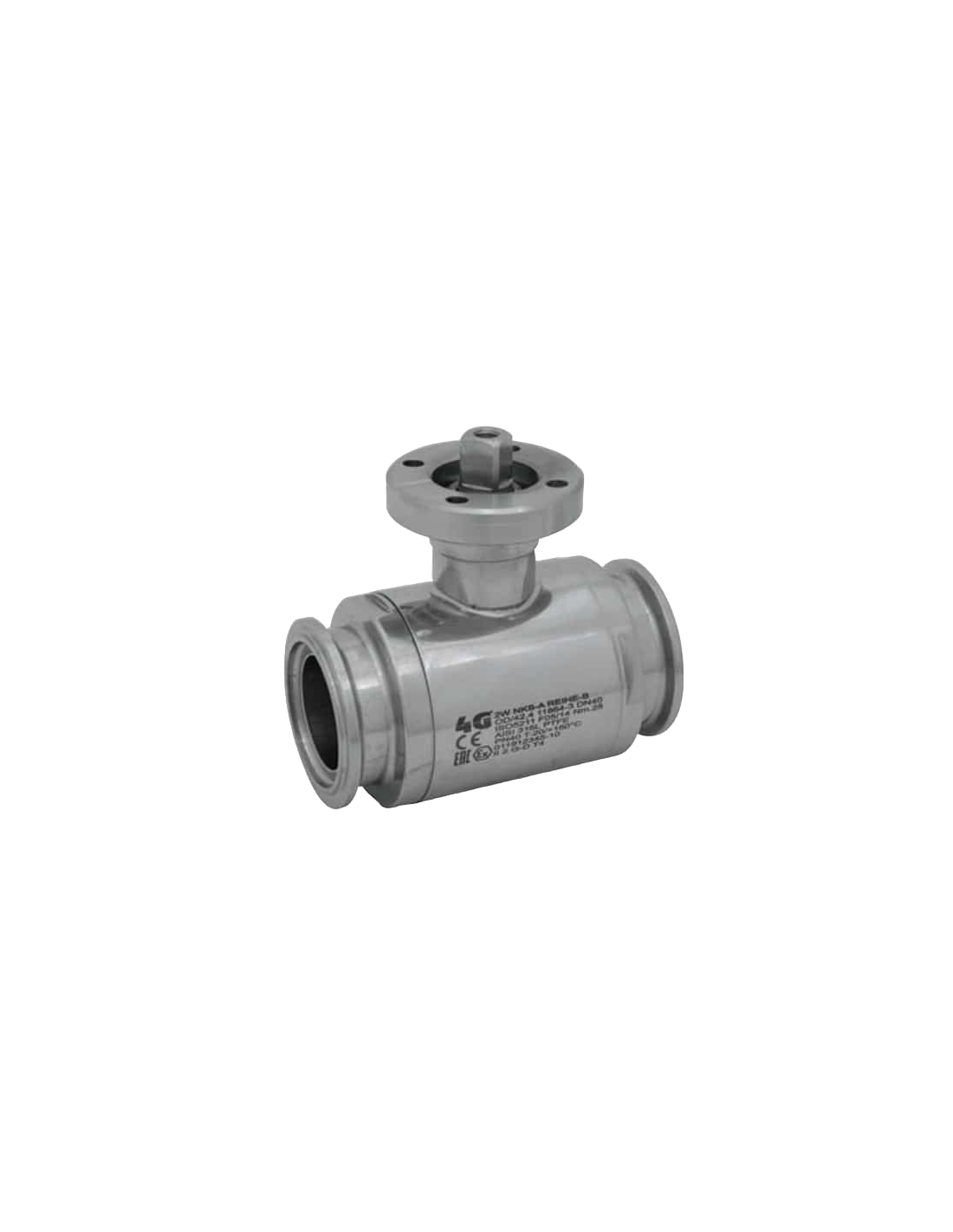

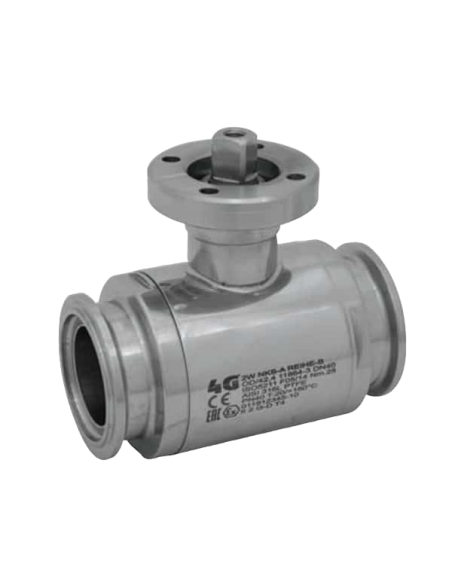

The Ball Valve Aseptic DIN 11864-3 REIHE A/B/C_NKS FORM A FEMALE - 103067 by 4G Ghidini is a two-way ball valve designed for aseptic applications. It features an ISO 5211 – DIN 3337 flange for actuator drive and offers connections compliant with ASEPTIK normative DIN 11864-3 REIHE A, B, and C, suitable for tubes according to DIN 11866 standards. The valve supports both full and reduced flow and is constructed from AISI 316L (1.4404) stainless steel. It is available in sizes ranging from DN10 to DN100 and DN10 to DN80, with seals made from modified virgin PTFE. The valve operates within a temperature range of -20°C to +170°C and has a polished outer finish. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges.
Standard (Options)
  • DIN
Connection (Options)
  • Aceptik
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection:

  • ASEPTIK normative DIN 11864-3 REIHE A, NKS Form A. For TUBE according to normative DIN 11866-A (DIN 11850 REIHE 2)
  • ASEPTIK normative DIN 11864-3 REIHE B, NKS Form A. For TUBE according to normative DIN 11866-B (ISO 1127)
  • ASEPTIK normative DIN 11864-3 REIHE C, NKS Form A. For TUBE according to normative DIN 11866-C (ASTM A-270)

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure:

  • from DN10 to DN100
  • from DN10 to DN80

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
