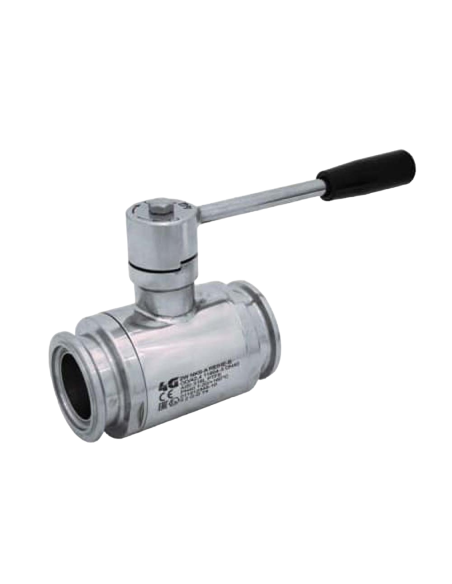

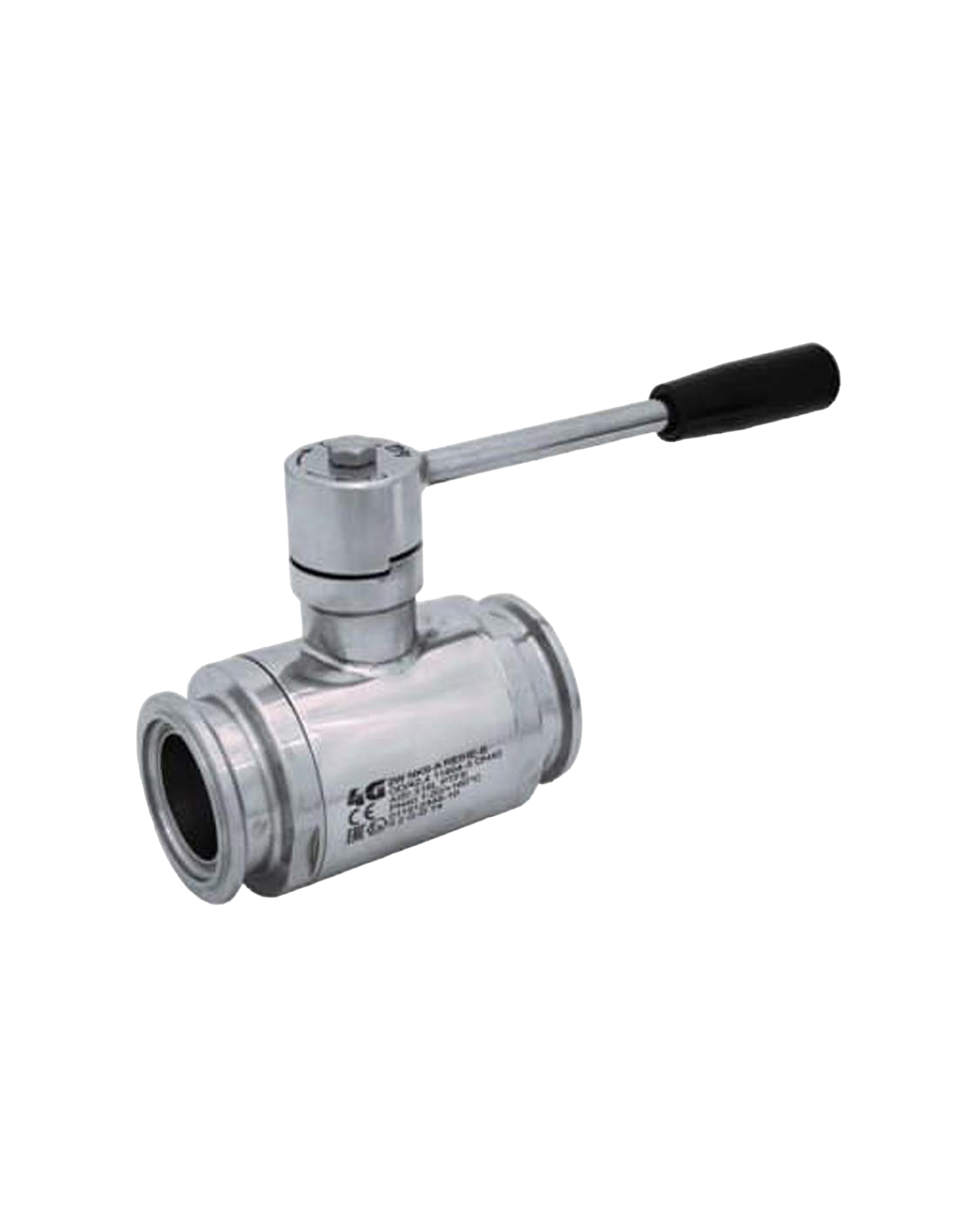

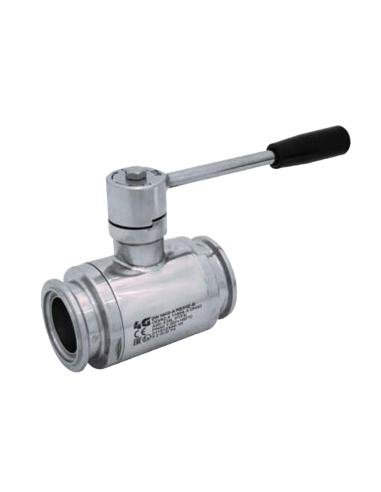

The Ball Valve Aseptic DIN 11864-3 REIHE A/B/C_NKS - 100167 by 4G Ghidini is a two-way ball valve designed for aseptic applications. It features an inox lever drive and is compatible with tubes according to DIN 11866 standards, available in REIHE A, B, and C configurations. The valve supports both full and reduced flow and is constructed from AISI 316L (1.4404) stainless steel. It is available in sizes ranging from DN10 to DN100. The valve is equipped with modified virgin P.T.F.E. seals and operates within a temperature range of -20°C to +170°C. The outer finish is polished for enhanced hygiene. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges.
Standard (Options)
  • DIN
Connection (Options)
  • Aceptik
Material (Options)
  • S.S. 316L
Pressure Rating (Options)
  • PN 100
Seat (Options)
  • PTFE

Datasheet and documents

Description

TWO-way ball valve

Drive: Inox lever

Connection:

  • ASEPTIK normative DIN 11864-3 REIHE A, NKS Form A. For TUBE according to normative DIN 11866-A (DIN 11850 REIHE 2)

  • ASEPTIK normative DIN 11864-3 REIHE B, NKS Form A. For TUBE according to normative DIN 11866-B (ISO 1127)

  • ASEPTIK normative DIN 11864-3 REIHE C, NKS Form A. For TUBE according to normative DIN 11866-C (ASTM A-270)

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure:

  • from DN10 to DN100
  • from DN10 to DN80

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
