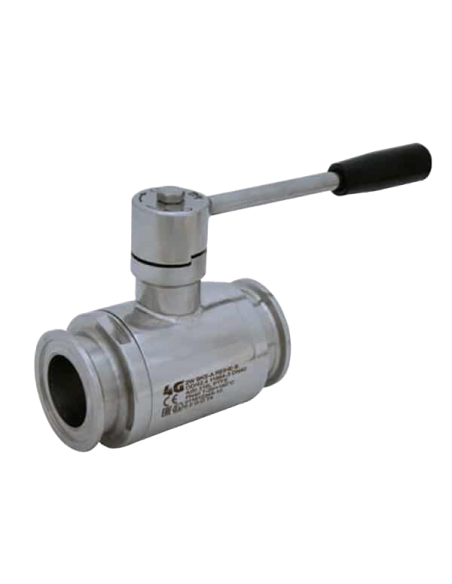

The Ball Valve Aseptic DIN 11864-3 REIHE A/B/C_BKS FORM A MALE - 130169 by 4G Ghidini is a two-way ball valve featuring an "Integral Seal" design. It is operated with an inox lever and is compatible with aseptic connections according to DIN 11864-3 standards, suitable for tubes conforming to DIN 11866-A, B, and C. The valve supports both full and reduced flow and is constructed from AISI 316L (1.4404) stainless steel. It is available in sizes ranging from DN10 to DN100 and DN10 to DN80, with seals made from virgin P.T.F.E. The valve operates efficiently within a temperature range of -20°C to +160°C and has a polished outer finish. Optional features include an ATEX antistatic system and compliance with M.O.C.A. CE 1935/2004, with additional sealing options available in PTFE with glass filler for temperatures up to +170°C.
Standard (Options)
  • DIN
Connection (Options)
  • Aceptik
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve “Integral Seal”

Drive: Inox lever

Connection:

  • ASEPTIK normative DIN 11864-3 REIHE A, BKS Form A. For TUBE according to normative DIN 11866-A (DIN 11850 REIHE 2)
  • ASEPTIK normative DIN 11864-3 REIHE B, BKS Form A. For TUBE according to normative DIN 11866-B (ISO 1127)
  • ASEPTIK normative DIN 11864-3 REIHE C, BKS Form A. For TUBE according to normative DIN 11866-C

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure:

  • from DN10 to DN100
  • from DN10 to DN80

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Sistema antistatico ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Guarnizioni di tenuta in:

PTFE caricato vetro -20°C+170°C
