KITO® pressure and vacuum relief valves

Typically, KITO® pressure and vacuum relief valves are used to prevent unacceptable levels of positive and negative pressure in closed systems. They constitute an important factor in preventing inadmissible pressure and vacuum and to minimize product losses.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.4571
  • Steel
Pressure Rating (Options)
  • PN 16

Datasheet and documents

Description

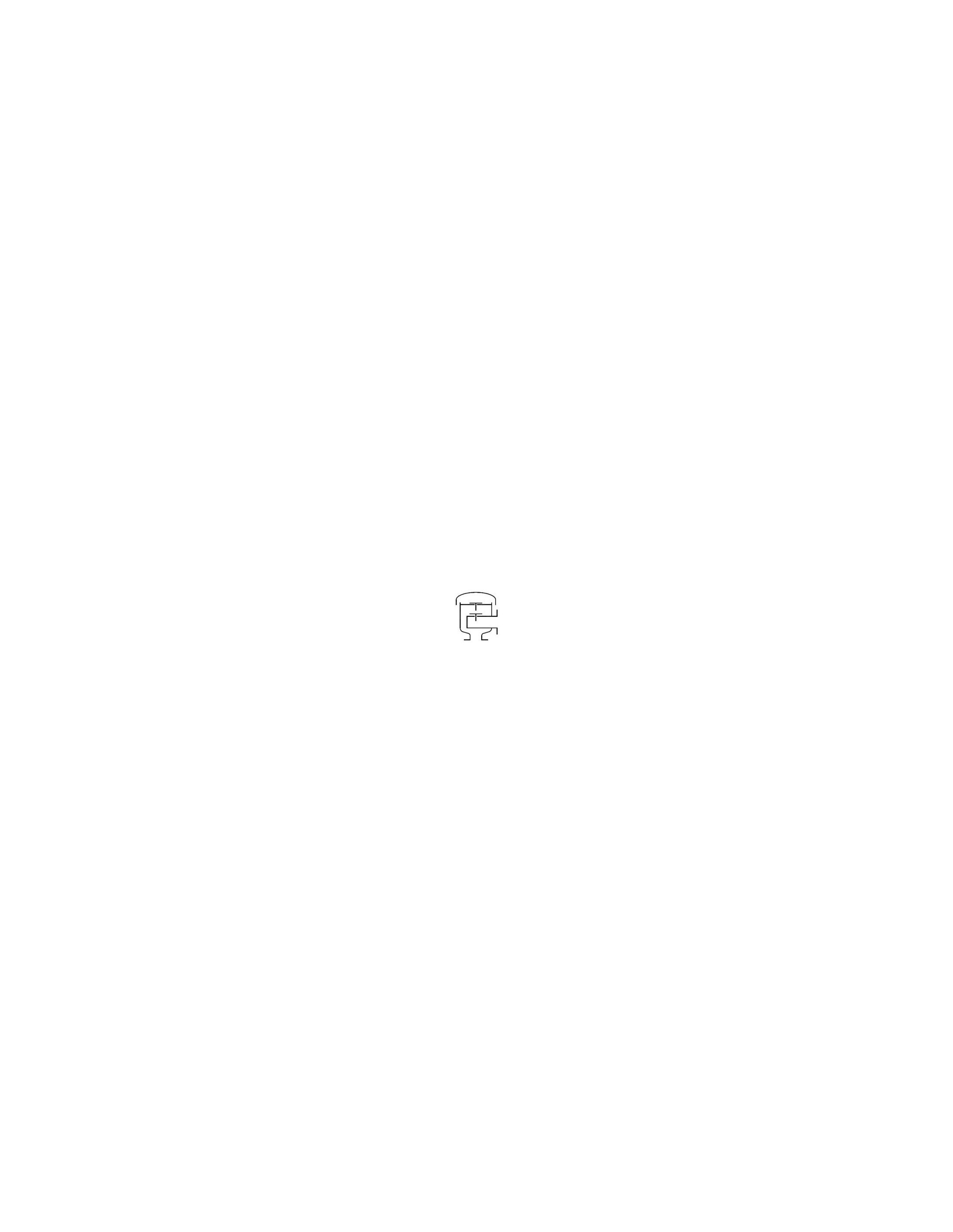

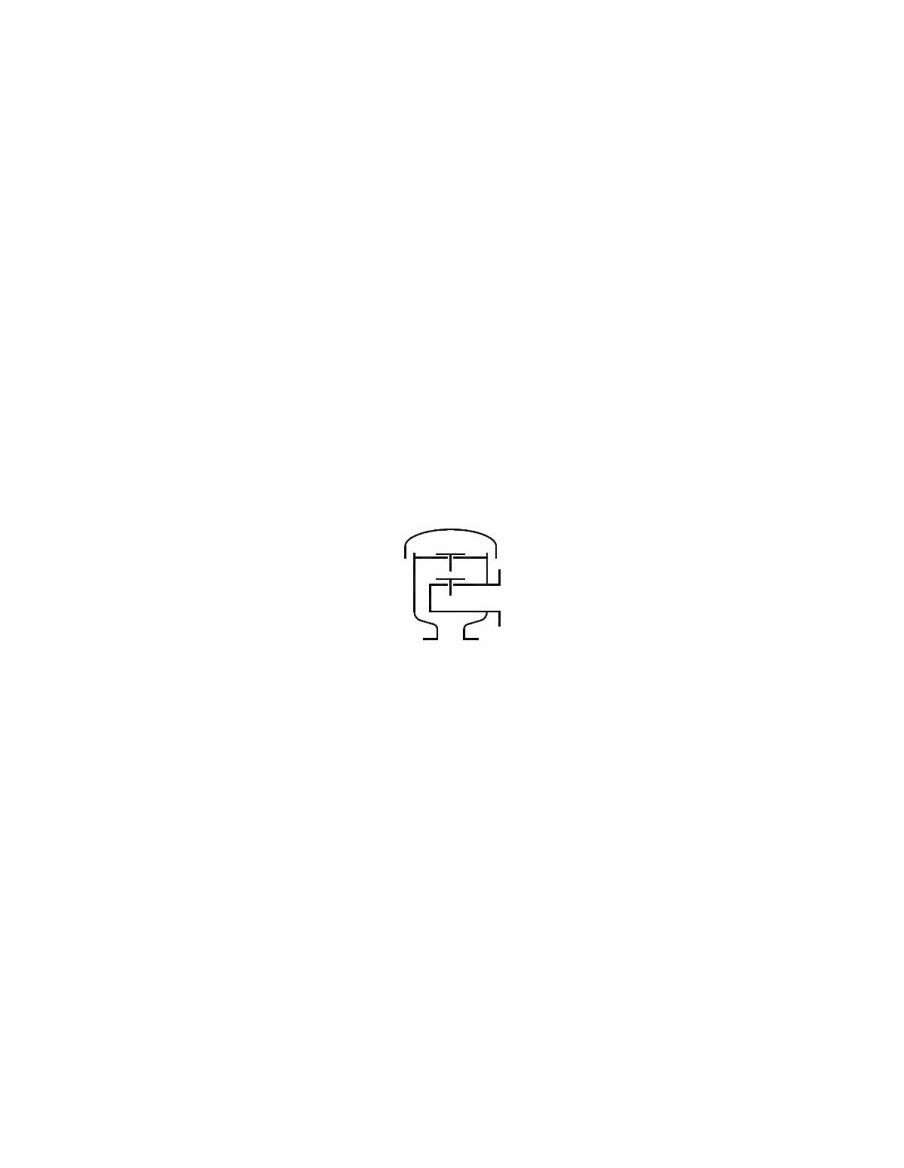

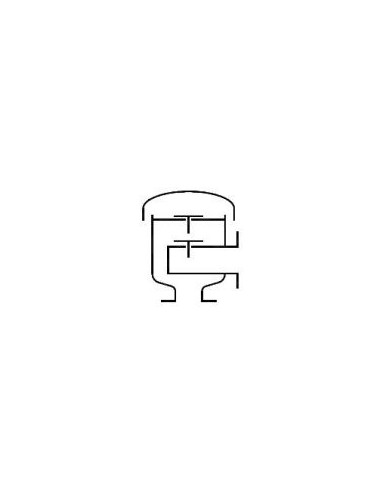

KITO® VD/o2-…

  • As end-of-line armature, preferably for non-flammable liquids stored under inert gas, for venting and breathing of fixed roof tanks and above-ground tanks, with lateral connection for the inert gas conduit.
  • The upper valve arrangement, which consists of a pressure valve, prevents the development of inadmissible pressure.
  • The lower valve serves to automatically control the supply of inert gas (e. g. nitro-gen) and adjusts the necessary inert gas pressure in the tank.
  • For the max. admission pressure see setting „vacuum“.
