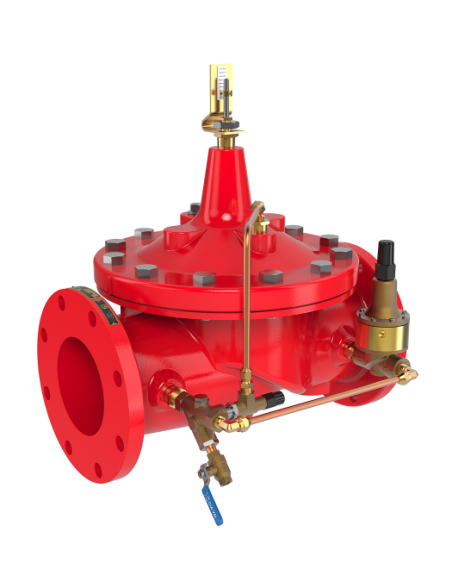

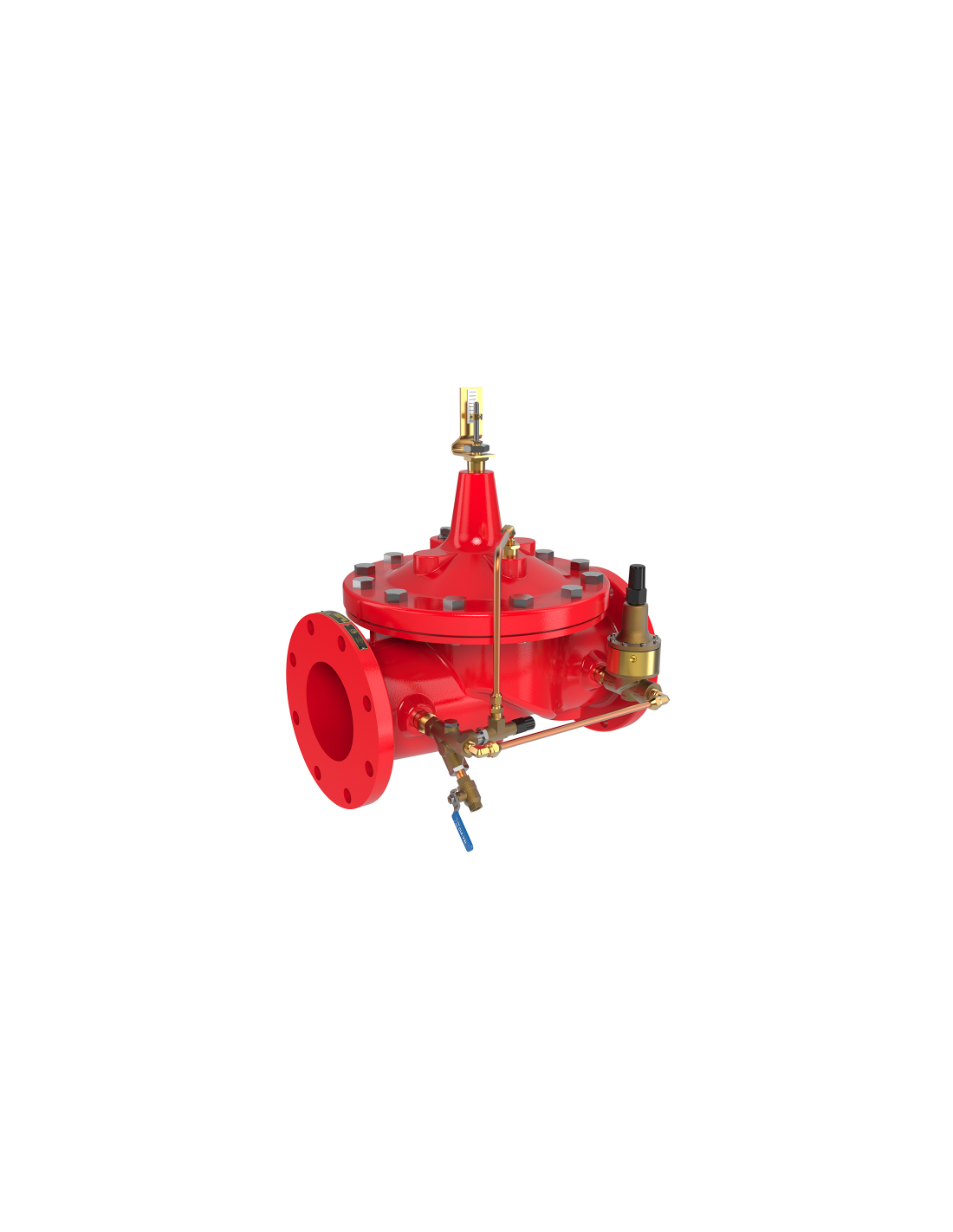

The Model 50B-5KG Pump Suction Control Valve is designed specifically for Fire Pump Suction Control Service in onshore industrial applications such as refineries and manufacturing facilities. Sizes 3-inch through 10-inch with standard disc guides are FM approved. The valve modulates to maintain the pump discharge in relation to the suction head available, thus assuring that the suction head pressure does not fall below the pre-set minimum. When there is a demand in the fire system, the pump is started, delivering water from the supply source to the area of demand.
By maintaining minimum pressure requirements in the supply main, the main is protected from possible damage or backflow conditions. Also, a minimum supply pressure is provided for local fire apparatus.
