Technical Specifications
- Material: Stainless steel
- Surface: polished
- Projection: 605 mm
- Installation height: 2345 mm (± 100 mm)
- Operating pressure: 1.5 to 3 bar
- Flow rate: 50 l/min (75/110 l/min)
- Water inlet: ¾“ male
Norms / Approvals
- EN 15154-2:2006
- EN 15154-5:2019
- ANSI Z358.1-2014
- DIN-DVGW, DVGW, NW-0416CL0425
- GOST-R, Certificate-No. 0615463 0615463

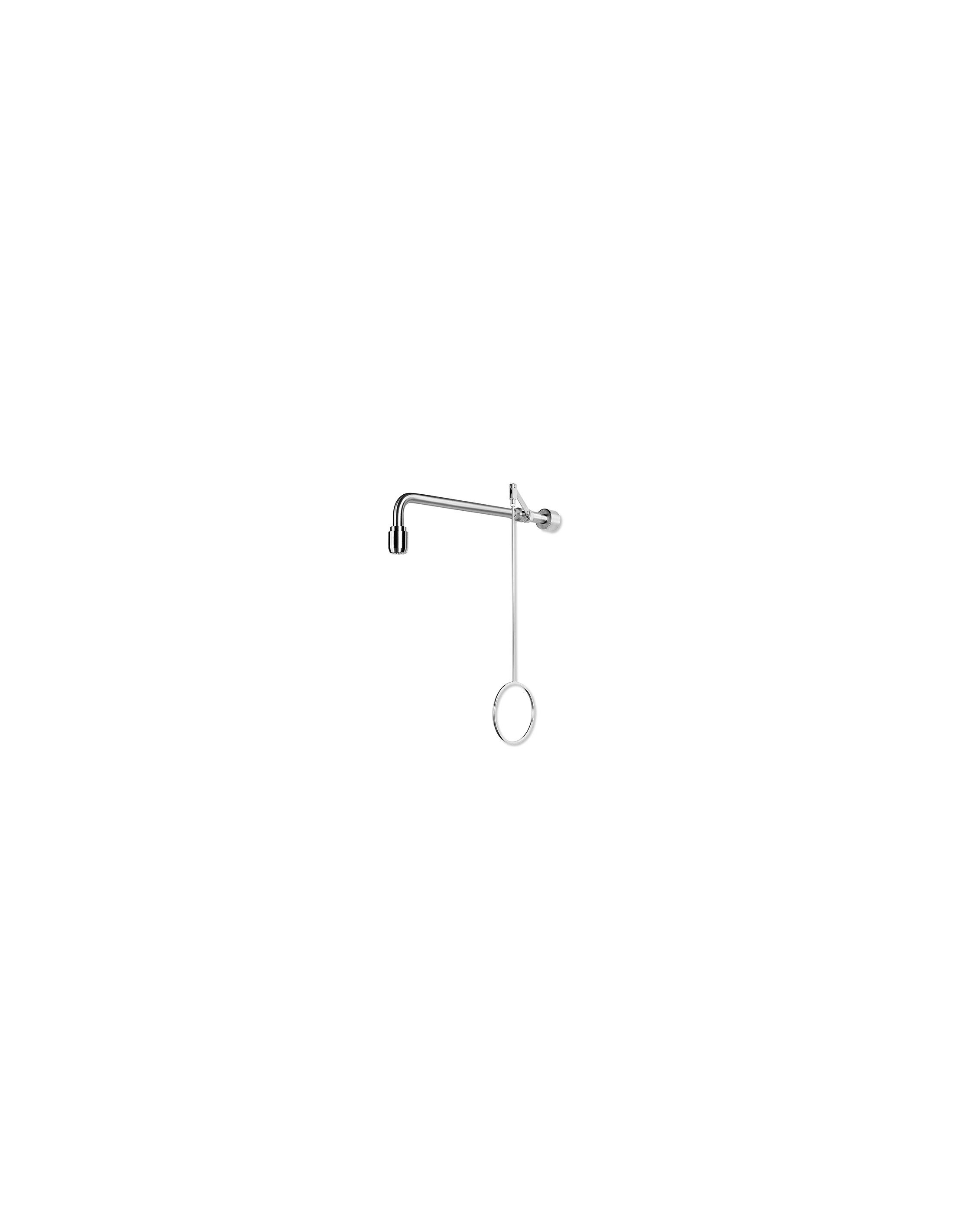

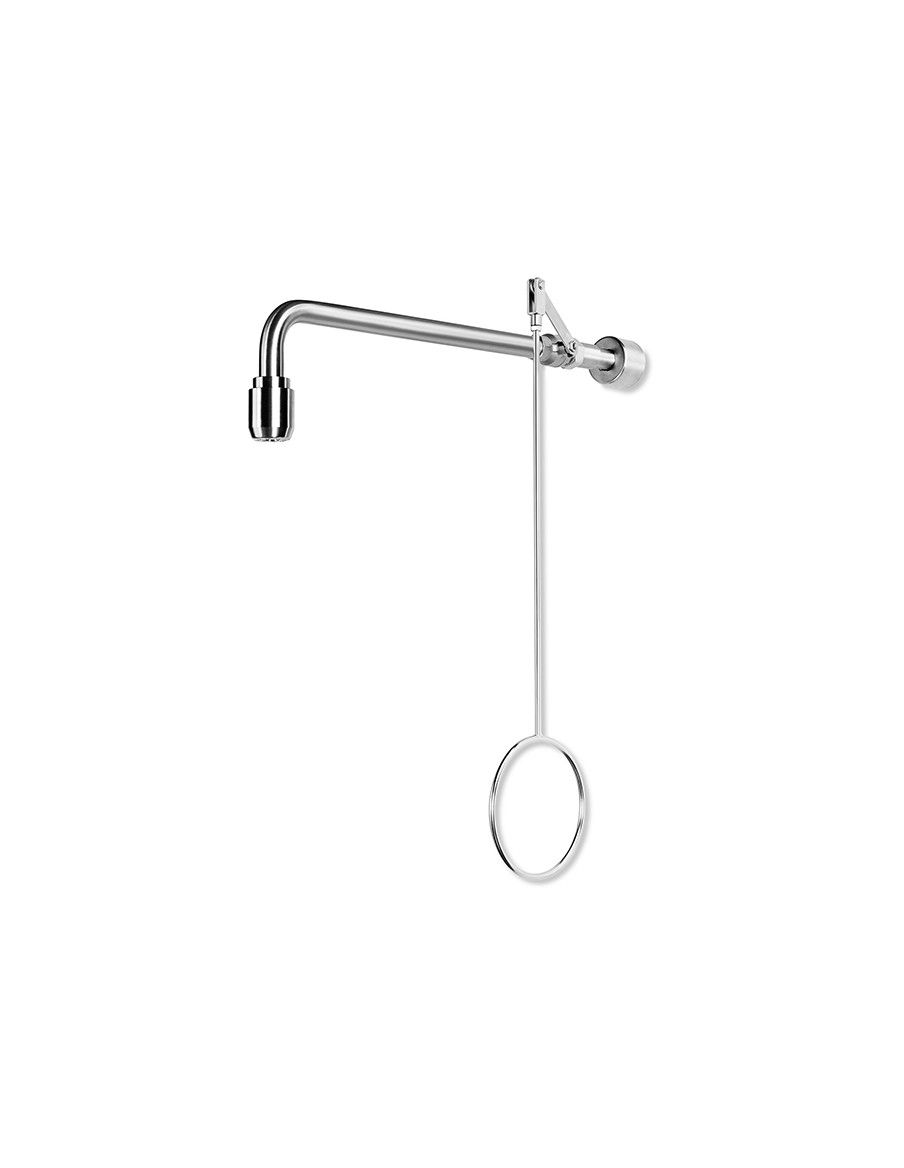

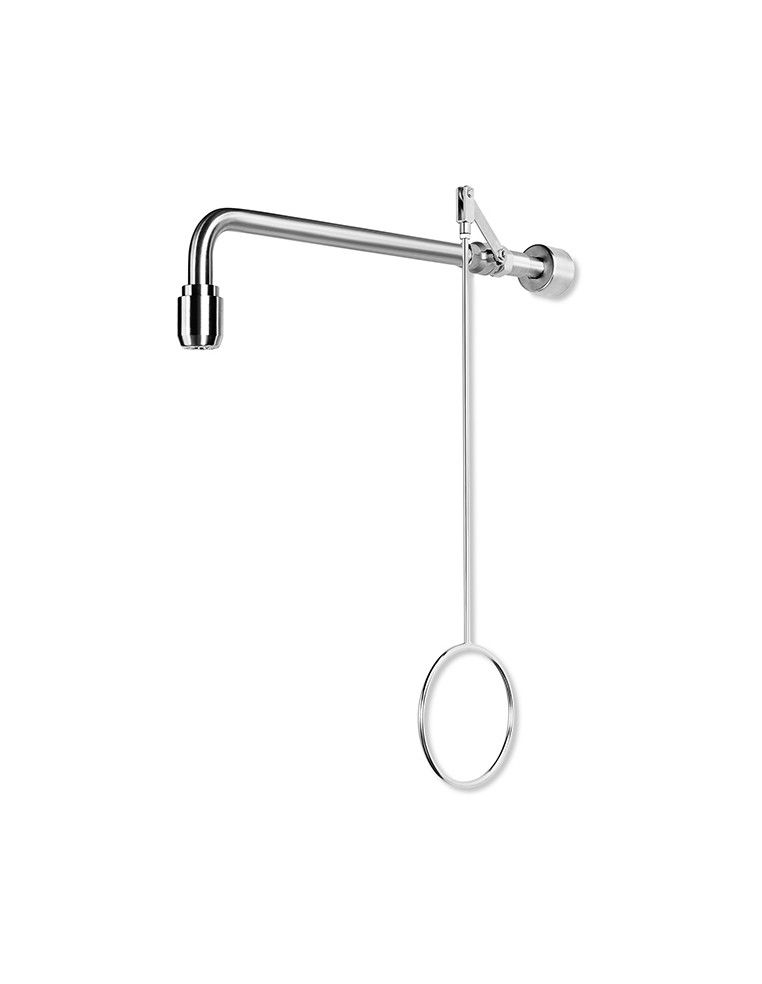

Product description
The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.
The integrated automatic flow regulator ensures a standard-compliant spray pattern regardless of the water pressure on site. With the enclosed safety sign according to EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is marked and visibility is improved. The viewing distance is 15 meters.
Technical Description
- connection pipe ¾“ of stainless steel, polished, length 75 mm, water inlet ¾” male
- push-on rosette of polyamide to cover the installation
- ball valve ¾” of stainless steel, with pull rod actuation, DIN-DVGW tested and certificated
- pull rod with ring handle of stainless steel, polished, length 700 mm
- wall shower arm ¾“ of stainless steel, polished, projection 605 mm
- integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
- high-performance shower head of stainless steel, polished, with improved spray pattern, corrosion resistant, largely scale and maintenance-free, very robust, self-draining
- sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
- mounting height 2345 mm (± 100 mm)
- according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
- according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
- DIN-DVGW tested and certificated
