Technical Specifications
- Dimensions (H x W): 560 x 225 mm
- Filling volume: 14 litre
- Filling pressure: 7 bar
- Flow rates: 7 l/min / 1.7 l/min (0.45 GPM)
- Flush times: about 2 minutes / 5 minutes
- Water filling: flap lid
- Compressed air connection: tyre inflation valve
Norms / Approvals
- EN 15154-4:2009
- ANSI Z358.1-2014
- GOST-R, Certificate-No. 0615463 0615463
Product description
Tank eye showers can be used to provide economical first aid in these locations as well. Transportable eye showers with a tank capacity of 16 liters are most commonly used. However, showers with a flushing time of less than 15 minutes should only be used to bridge the gap until a permanently installed shower is reached.

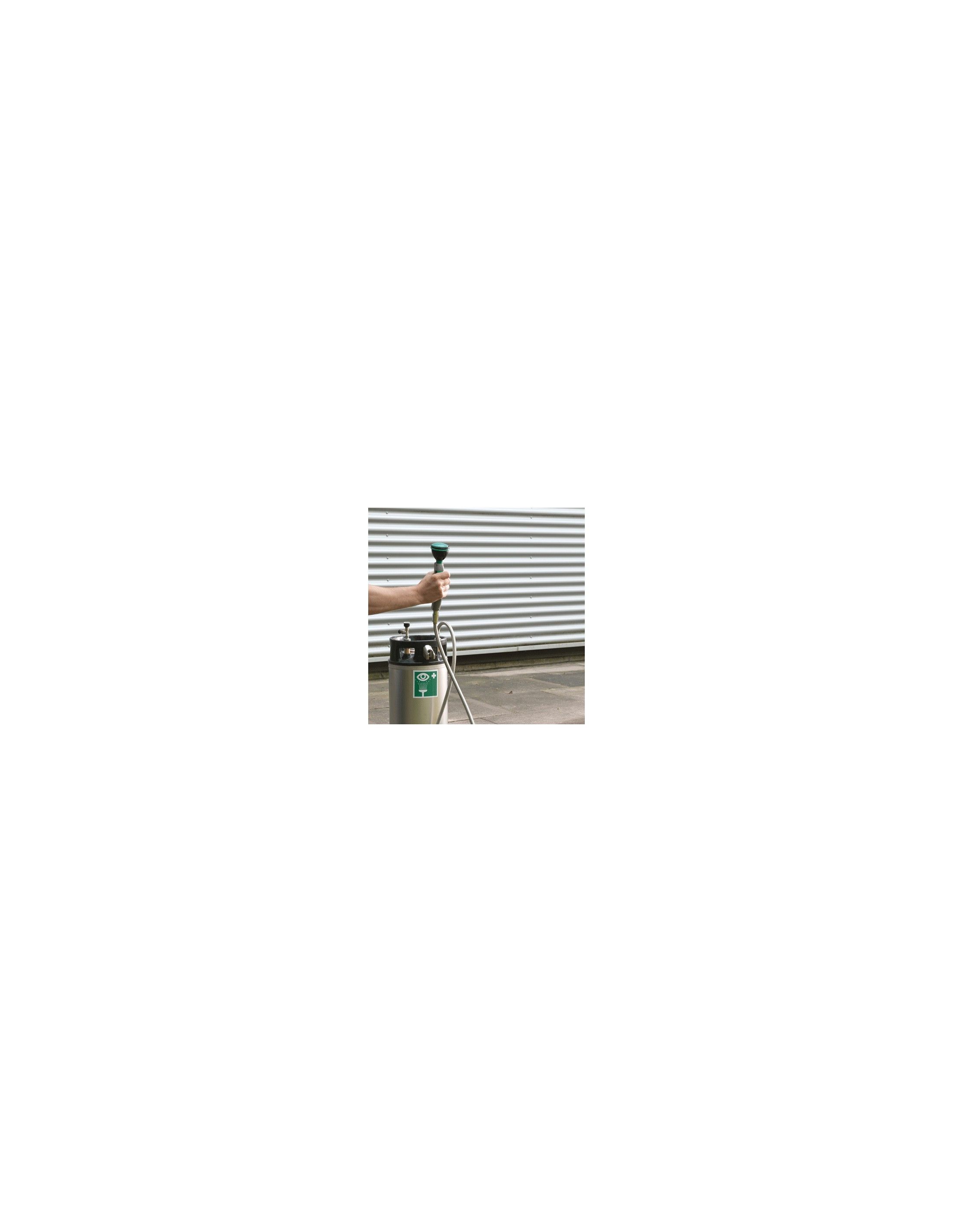

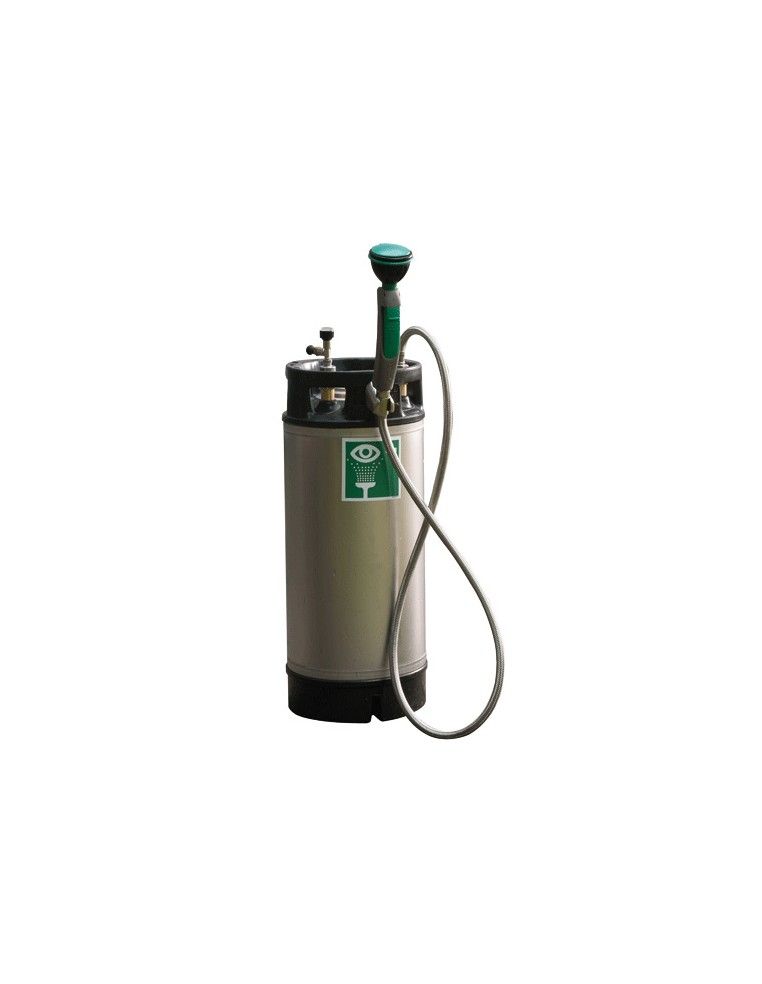

The B-SAFETY ClassicLine tank eye shower BR958005 has a 16-liter tank made of stainless steel. The filling takes place via the large hinged lid attached at the top. A minimum filling pressure of 7 bar must then be reached via the tire filling valve located on the side of this. The shower is then triggered by actuating the connected hand-held eye shower and the filled water is completely drained via the hand-held eye shower.
Technical Description

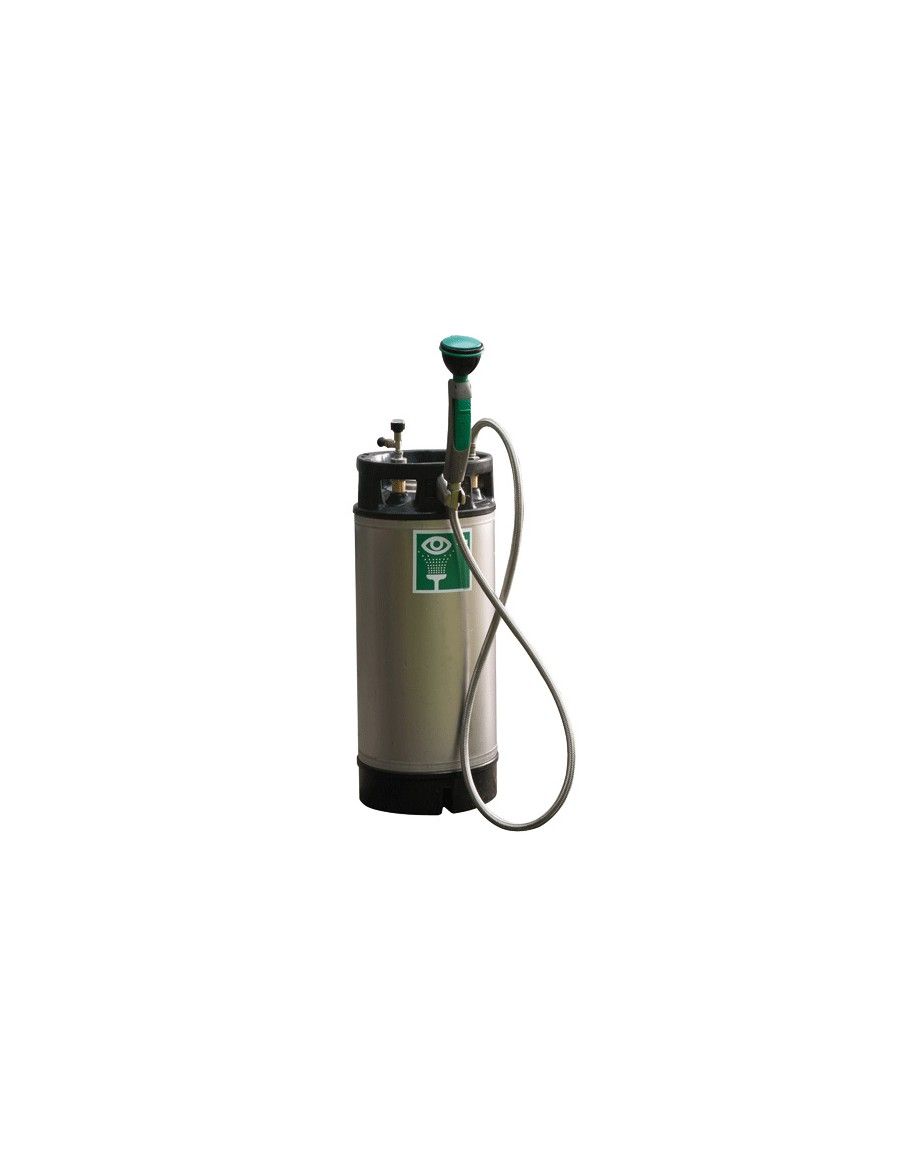

- tank of stainless steel, with a capacity of 16 litres
- water inlet via large flap lid on the tank, compressed air connection tyre inflation valve
- for mobile use or when no water connection is available

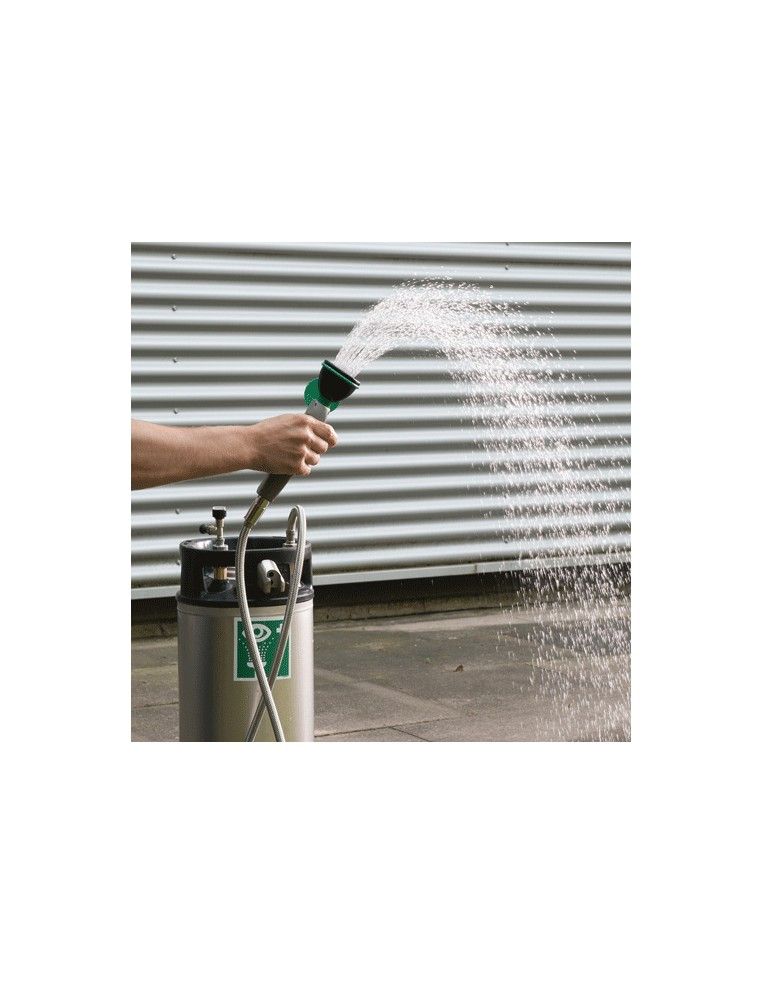

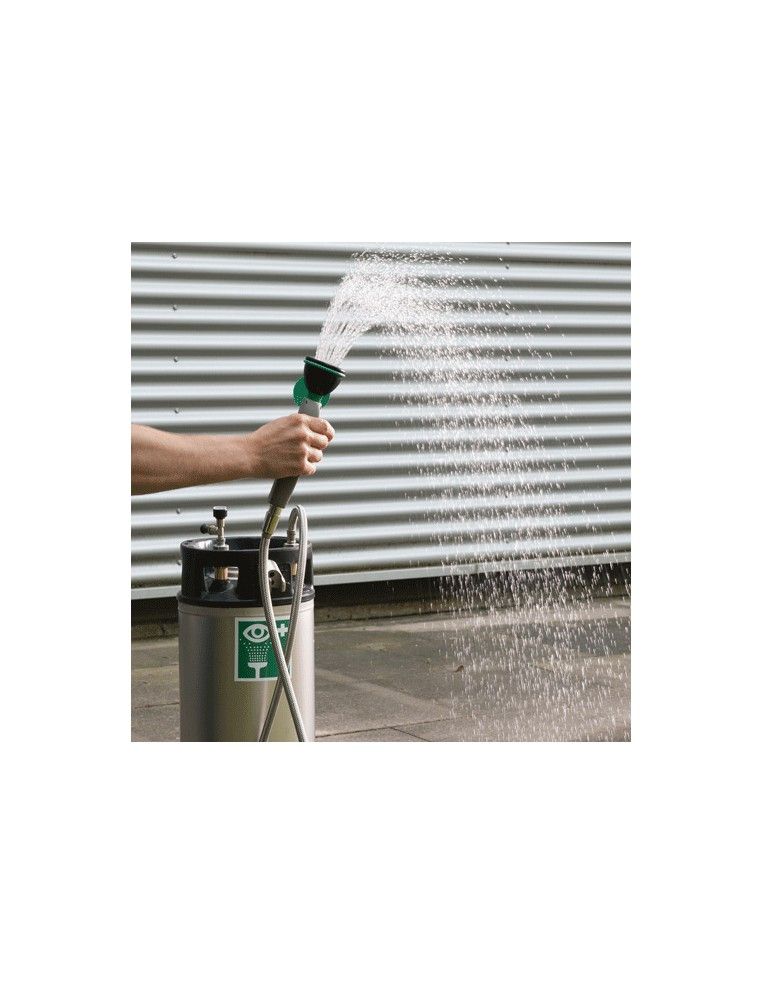

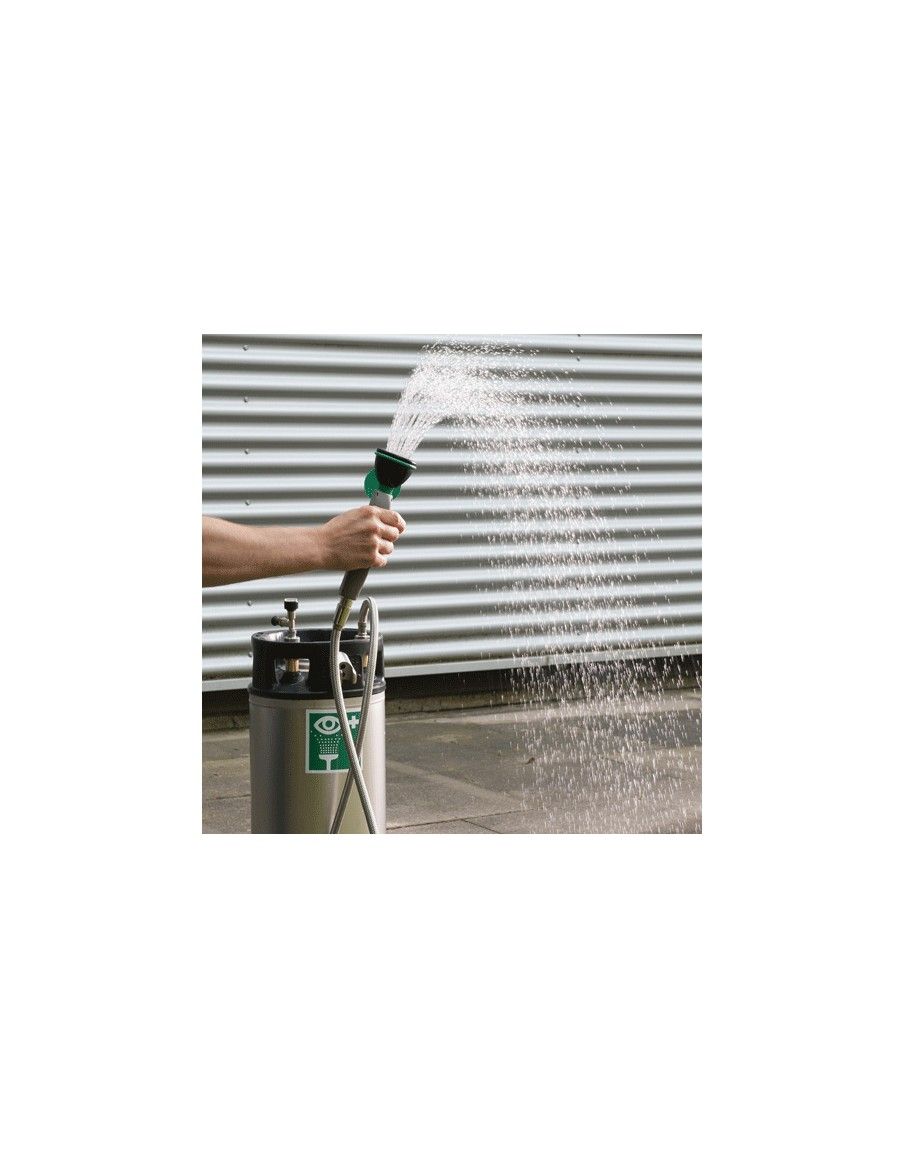

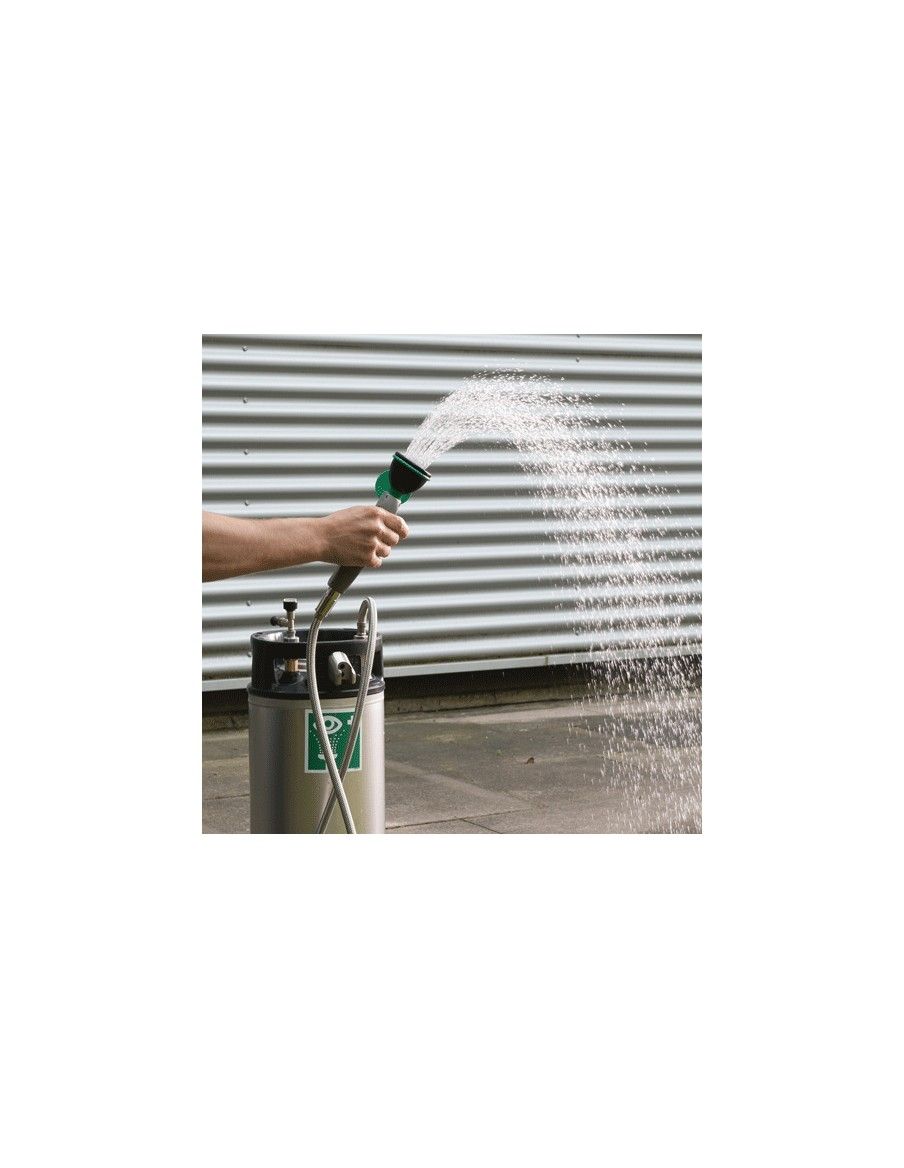

- actuation by activation of the hand-held eye shower

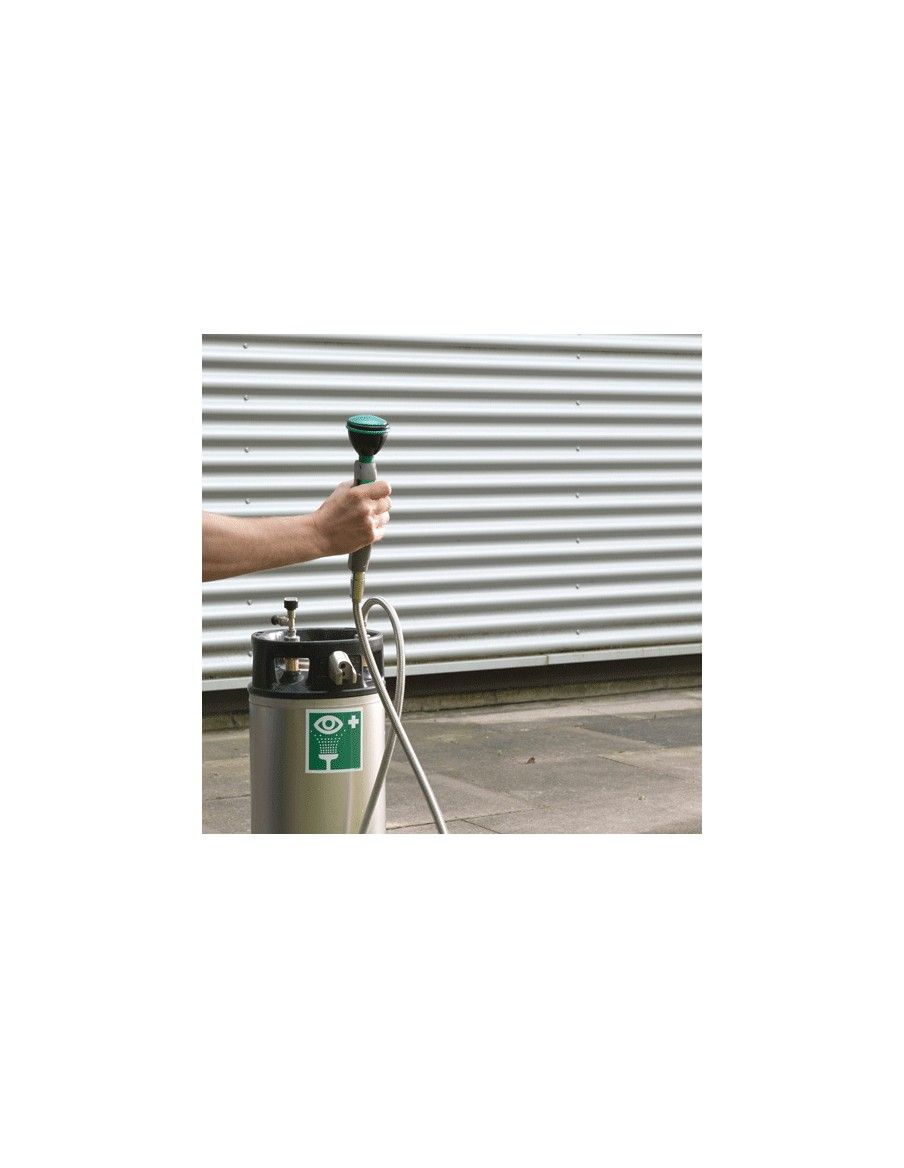

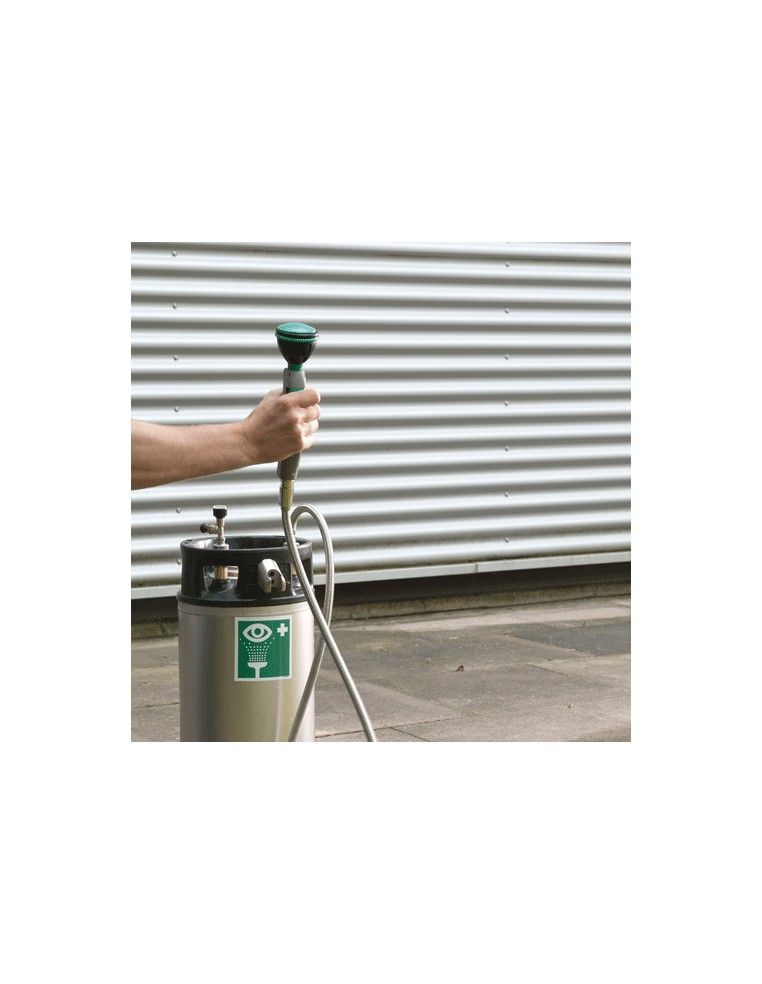

- hand-held eye shower with one spray head, mounting by wall bracket on the tank
- ergonomically shaped handle with integrated, adjusting activation made of plastics, valve not self-closing
- high-performance spray head for large-scale dispersion of water, with plastic spray plate, low calcification incl. with rubber sleeves and sealed dust caps with folding mechanism
- integrated automatic flow regulator 7 litres / minute (1.7 litres / minute / 0.45 GPM) for a standard-compliant spray pattern
- integrated backflow preventer
- stainless steel covered hose, length 1.5 meter, water inlet ½” female, DIN-DVGW tested and certificated
- sign for eye shower according to EN ISO 7010 und ASR A1.3 mounted on the tank, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
- dimensions (H x W x D): 560 x 225 x 225 mm
- according to ANSI Z358.1-2014 and EN 15154-4:2009
