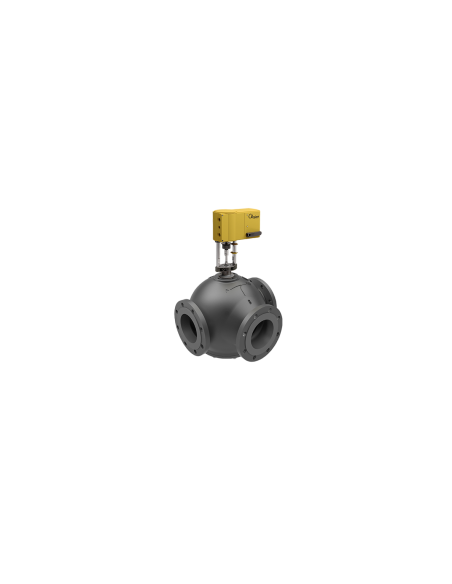

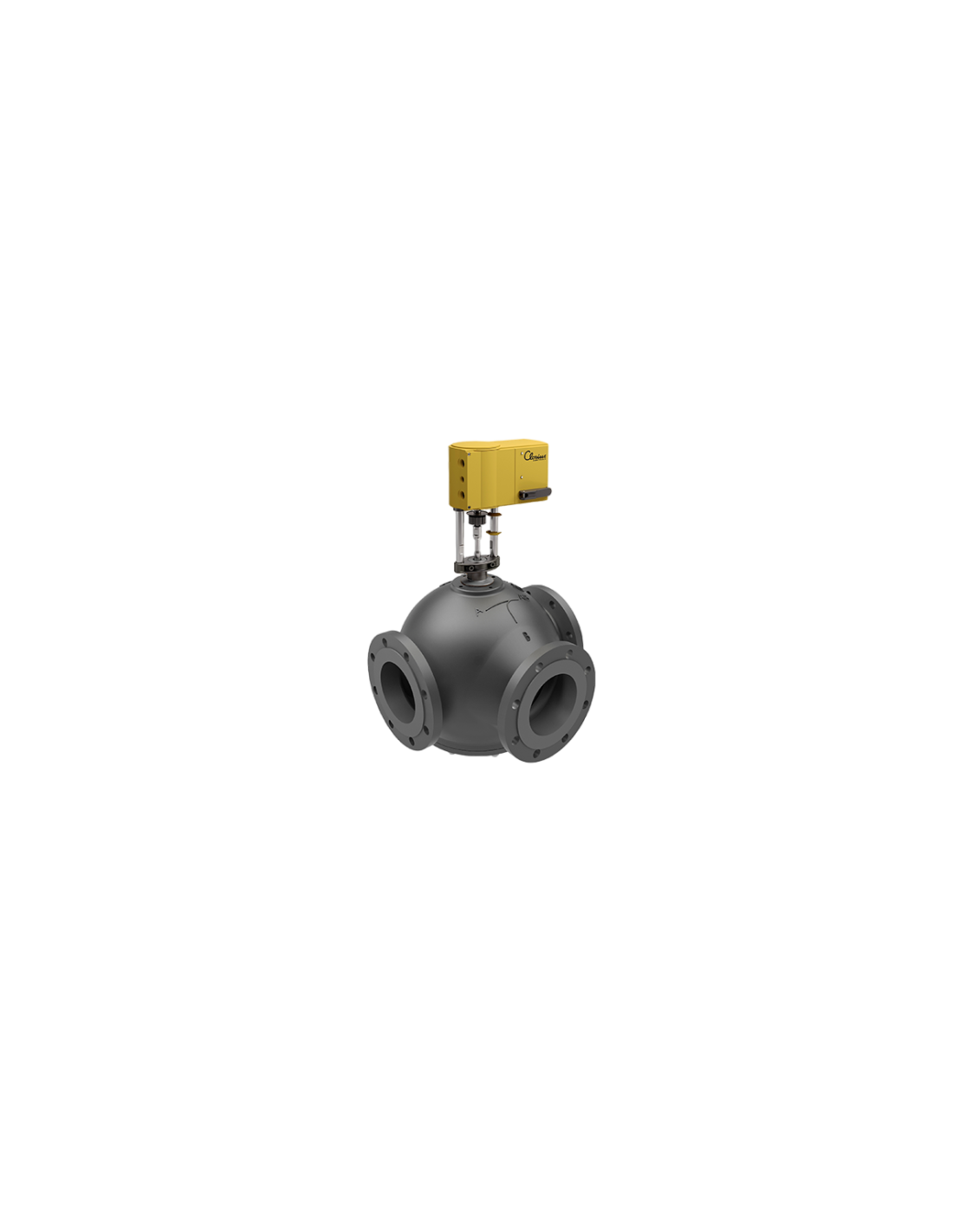

The Control Valve 3-Way G3FA-I from Clorius Controls is designed for regulating fresh water, lubricating oil, and other liquid media in large industrial processes, district heating, and marine installations, such as cooling main and auxiliary engines. Compatible with Clorius valve motor type AVM/F 234 or Clorius pneumatic actuators, these valves are available in sizes DN80 to DN300. They are constructed from nodular cast iron with components made of aluminum bronze and stainless steel, and they feature flanges compliant with EN 1092-2, JIS B 2210 10K, and DIN 2633 standards. The valves are rated for nominal pressures of PN10 for sizes 250-300 and PN16 for sizes 80-200.
Standard (Options)
  • DIN
  • JIS
Connection (Options)
  • Flanged
Material (Options)
  • EN-GJS-400-15 (Nodular Cast Iron)
Pressure Rating (Options)
  • PN 10
  • PN 16
Flow (Options)
  • Diverting
  • Mixing

Datasheet and documents

Description

Applications

Control valves type G3FA-I are designed for regulating of fresh water, lubricating oil and other liquid media. The valves are designed for use in conjunction with large industrial processes, district heating and marine installations, e.g. cooling of main and auxiliary engines. Is used in conjunction with Clorius valve motor type AVM/F 234 or Clorius pneumatic actuators.

GENERALLY

Sizes: DN80, 100, 125, 150 DN200/175, 200, 200/250, 300

Nom. pressure: PN10 - 300/250-300 PN16 - 80-200

Material: Nodular cast iron

Material (components): Alu. bronze & Stainless steel

Flanges: EN 1092-2 JIS B 2210 10K DIN 2633
