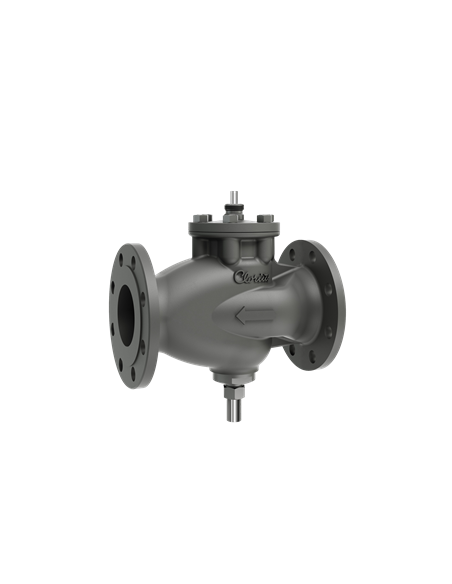

The Control Valve 2-way DN 100-150mm Reverse Acting by Clorius Controls is designed for efficient regulation in cooling applications. Constructed from durable cast steel, this valve is suitable for a variety of applications including compressed air, cooling, demi water, heating, solar energy, and steam systems. Its reverse acting mechanism ensures precise control and reliability in demanding environments. Ideal for industrial and commercial use, this valve offers robust performance and versatility across multiple fluid control scenarios.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • Cast Steel
Pressure Rating (Options)
  • PN 16
  • PN 25
Flow (Options)
  • Straight Way

Datasheet and documents

Description

Applications

  • compressed air
  • cooling
  • demi Water
  • heating
  • solar energy
  • steam

Art. No.

Description

Size

Item weight

PN

Type of connection

1-2320371VALVE H2FR DN100, EN FLANGESDN10039.0 KGMPN 25Flange
1-2320401VALVE H2FR DN125, EN FLANGESDN12573.0 KGMPN 25Flange
1-2320436VALVE H2FR DN150, EN FLANGESDN15076.0 KGMPN 16Flange
1-2320439VALVE H2FR DN150 KVS 310. PN1676.0 KGMPN 16Flange
1-2321068VALVE H2FR DN100 KVS125 ANSI 15037.0 KGMClass 150ANSI flange

Art. No.

Size

d

L

H1

H

1-2320371DN1004" (DN100)350.0145.0
1-2320401DN1255" (DN125)400.0180.0
1-2320436DN1506" (DN150)400.0180.0
1-23204396" (DN150)
1-23210684" (DN100)

Characteristics

Manufacturer5705737000006
