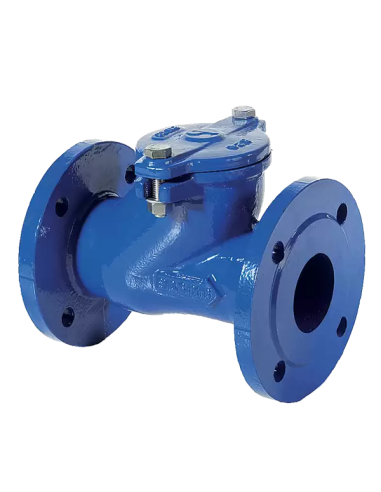

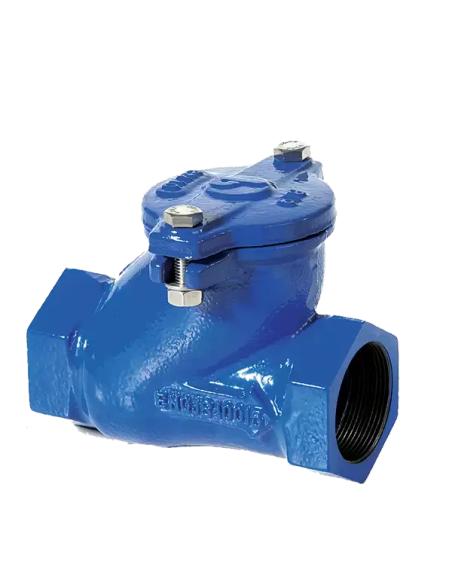

The Ball Check Valve - 07 by Brandoni is a robust and reliable valve made from ductile iron, designed to meet stringent product standards and comply with EN ISO 9001 quality requirements. Available in both flanged (DN50 to DN250) and threaded (DN25 to DN80) versions, these valves are ideal for handling waste water, industrial applications, agricultural uses, and viscous or dense liquids. They can be installed vertically (recommended) or horizontally, offering full bore, low head losses, and self-cleaning capabilities. The valve features a removable bonnet for easy cleaning or ball replacement without pipeline removal. Note that it is not suitable for steam and gas applications. Accessories include spare balls and seals.
Standard (Options)
  • DIN
Connection (Options)
  • BSP
  • Flanged
Material (Options)
  • EN-GJS-400-15 (Nodular Cast Iron)
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • NBR

Datasheet and documents

Description

BALL CHECK VALVE

The valves in series 07 are ball check valves made of ductile iron, and are manufactured in accordance with the most severe product norms, and in conformity with the quality requirements of EN ISO 9001.

They are available in a flanged version, from DN50 to DN250, and in a threaded version, from DN25 to DN80.

They are suitable for waste water, industrial applications, agricultural purposes, for viscous e dense liquids.

(Please ensure the choice of the corresponding item) YES: for installing in a vertical (recommended) and horizontal position.

Full bore, low head losses, self-cleaning.

Removable bonnet for cleaning or changing the ball without removing the valve from the pipeline.

NO: for steam and gas.

Accessories

  • Spare ball
  • Spare seals

Certifications

CE (not marked)

Certifications EAC

Hygienic certificate PL

Certificate Ukraine

DM174
