DESCRIPTION

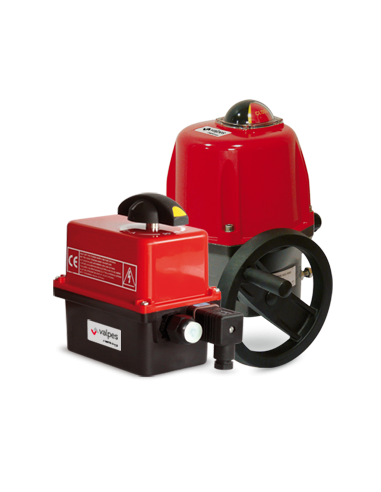

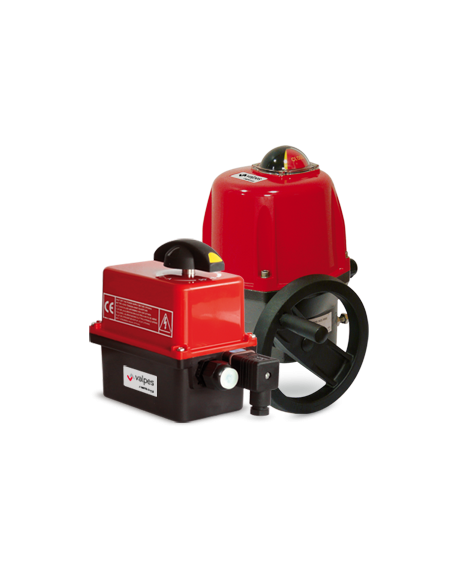

Actuators from 10 to 2400 Nm with Modbus-RTU fieldbus protocol compatibility.
COMPATIBLE SERIES
- ER PLUS
- VR/VS
- VRX/VSX - ATEX
- LT – low temperatures
- DV/DVX – DNV-GL and ATEX
- VT PLUS
- MT – multiturn
- All BBPR (GS6) versions
- All POSI-BBPR (GPS) versions
A SIMPLE AND EFFECTIVE TECHNICAL ARCHITECTURE
The “master-slave” architecture of Modbus-RTU offers great operating flexibility. Each RS485 line makes it possible to associate a master device and 31 slaves over a maximum distance of 1200 meters. Using repeaters, Modbus-RTU allows the connection of 247 actuators to a PLC.
AN EASY INTEGRATION WITH EXISTING INSTALLATIONS
The deployment of a Modbus-RTU actuator network requires very little infrastructure, that’s only the addition of a serial link cable compatible with the EIA-485 standard.
AN ACCESS TO ANY TYPE OF NETWORK VIA GATEWAYS
Valpes Modbus-RTU actuators can be integrated into any existing PLC network, using different communication protocols. The gateways allow a conversion to:.
| Modbus TCP/IP | Profibus DP | Profinet |
| Ethernet/IP | Profibus PA | CANopen |
A HIGH RELIABILITY
Modbus incorporates an error verification code named " cyclic redundancy check " or CRC, relating to all the frames sent. In the event of a weak electrical signal, an error may occur; in which case the message will be reissued until it is correctly understood.
