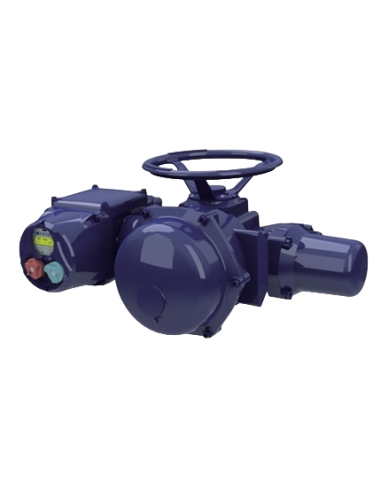

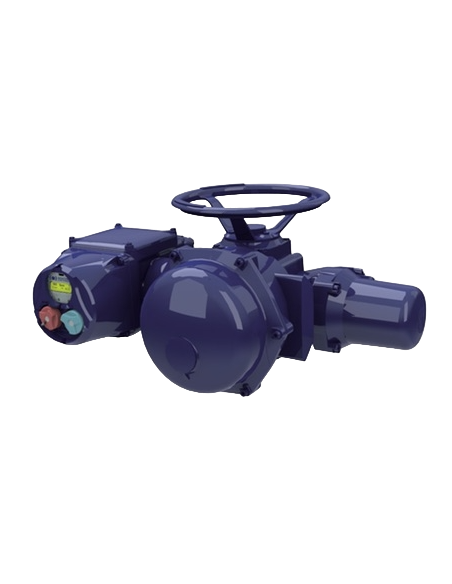

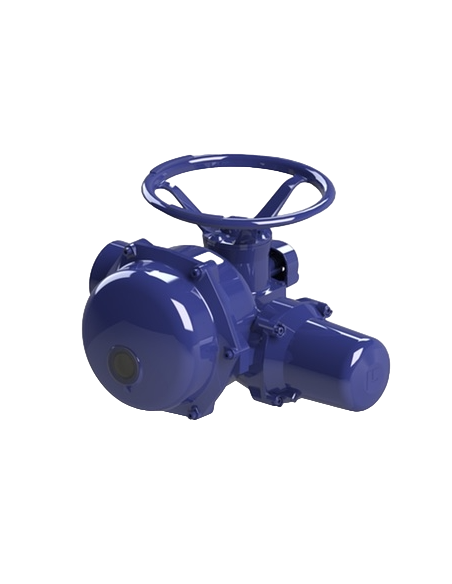

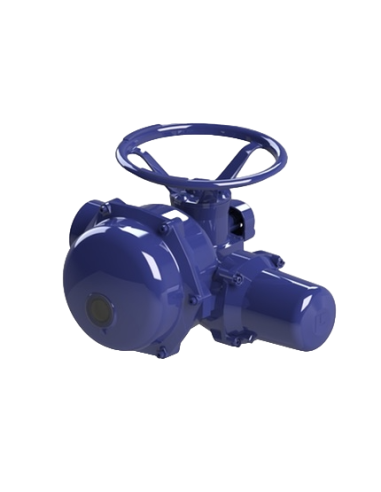

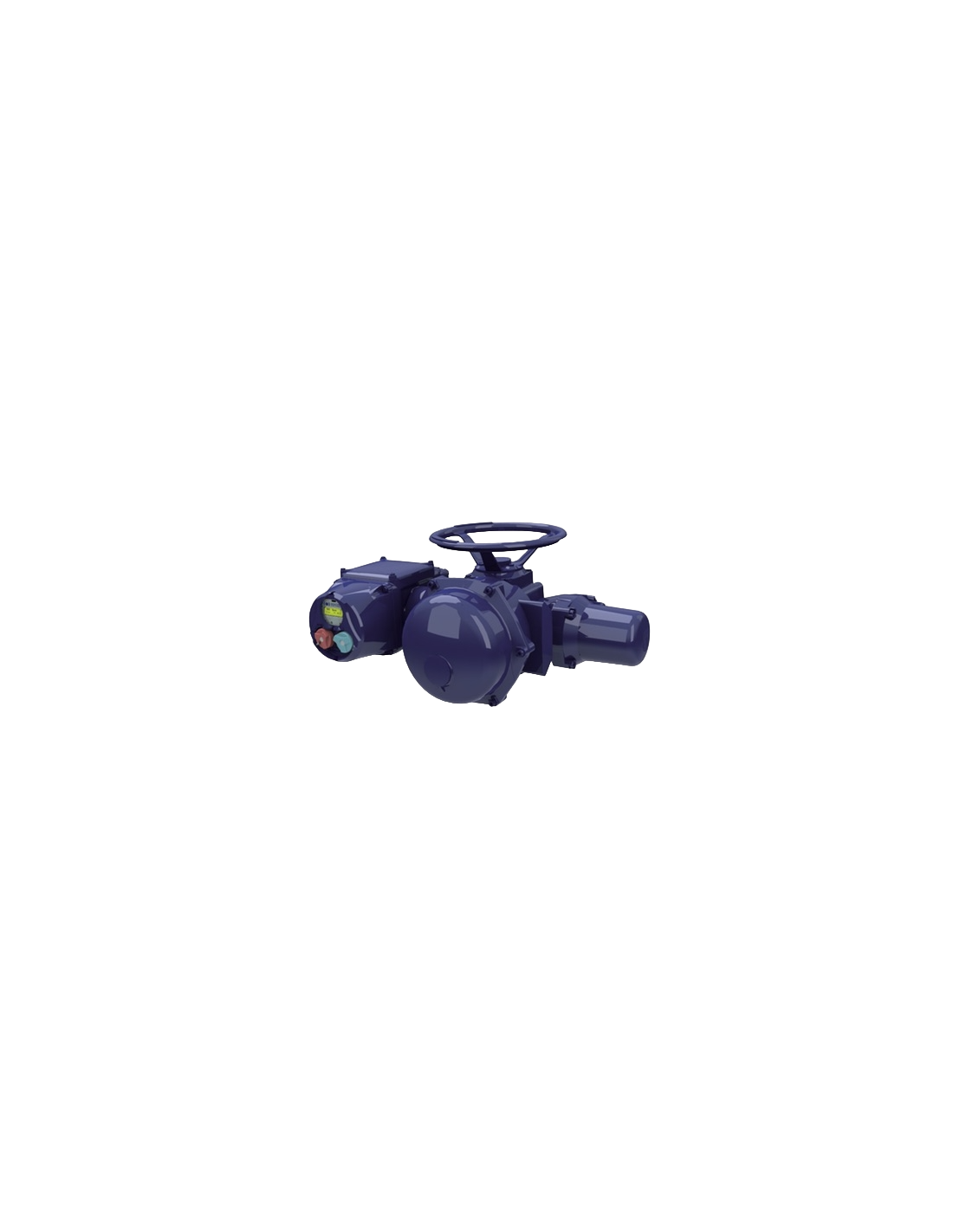

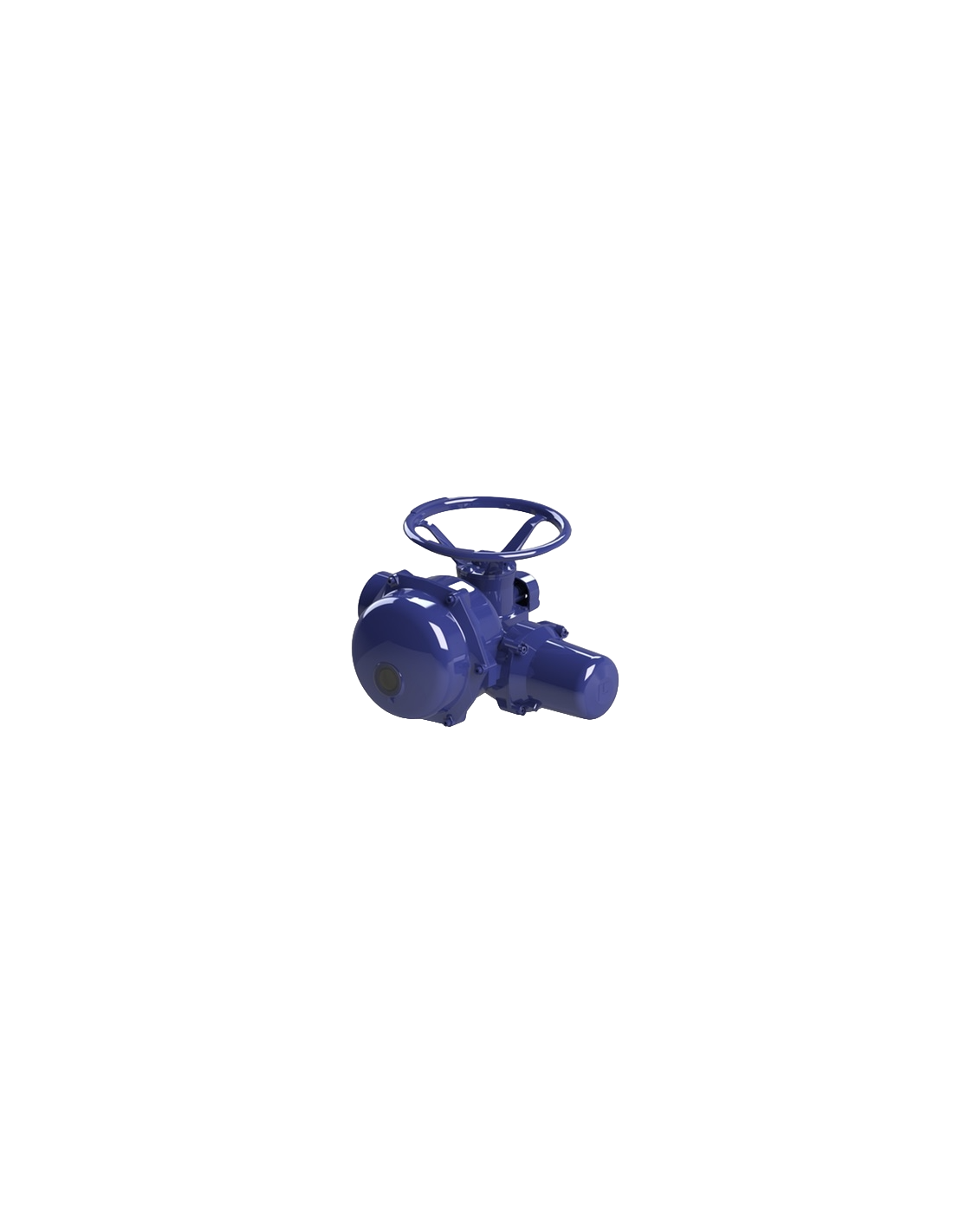

Electric Actuator - ST Range | Bernard Controls

The Electric Actuator - ST Range by Bernard Controls is a versatile and robust solution designed for a wide range of industrial applications. It offers a torque range from 60 to 2,200 Nm directly, with the capability to reach up to 20,000 Nm upon request. The actuator supports speeds from 10 to 120 RPM, with high-speed options up to 190 RPM for models under 300 Nm. It features advanced control options, including the Smart INTELLI+®(v2) with Fieldbus Redundancy and SIL2 certification, ensuring reliable performance in critical applications. The actuator is classified for various operations: On-Off (Class A+), Inching/Positioning (Class B+), and Modulating (Class III). It boasts a double-sealing connector with INTELLI+® integration, providing enhanced environmental protection with an IP68 rating and suitability for environments ranging from C3 to C5-M, and temperatures from -20°C to +70°C, with optional extensions for extreme temperatures. Key benefits include a wide range of speeds and turns, self-locking gears, precise torque measurement, and an innovative emergency handwheel system. The INTELLI+® integrated control offers an advanced solution for critical applications, ensuring high precision, repeatability, and ease of use.
