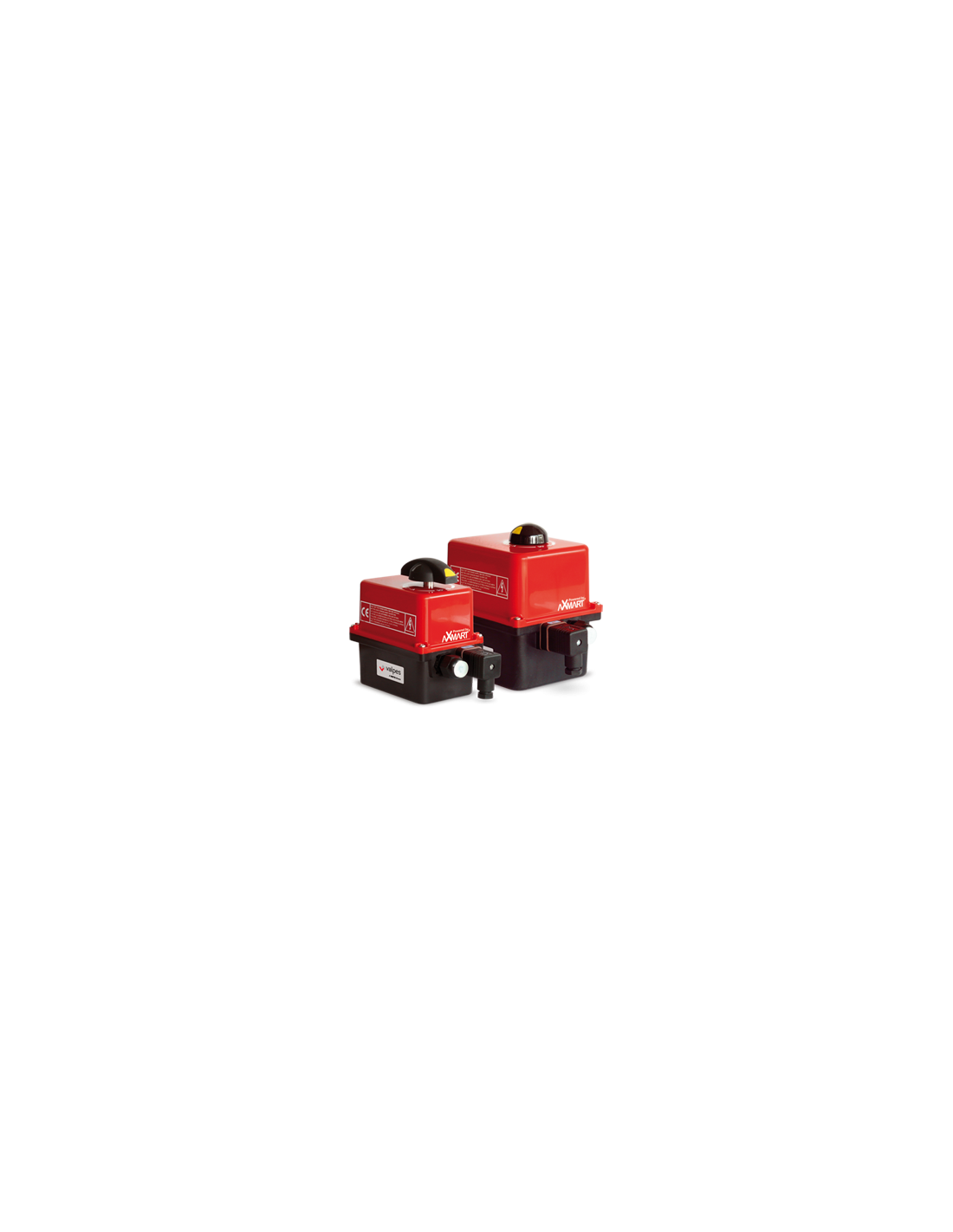

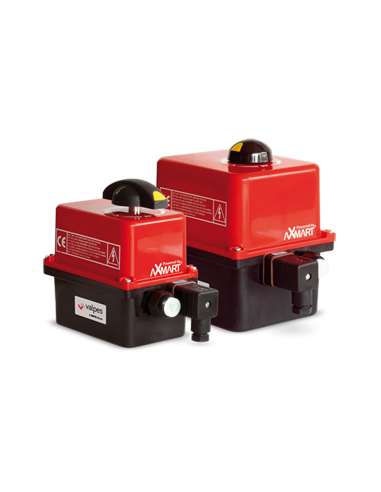

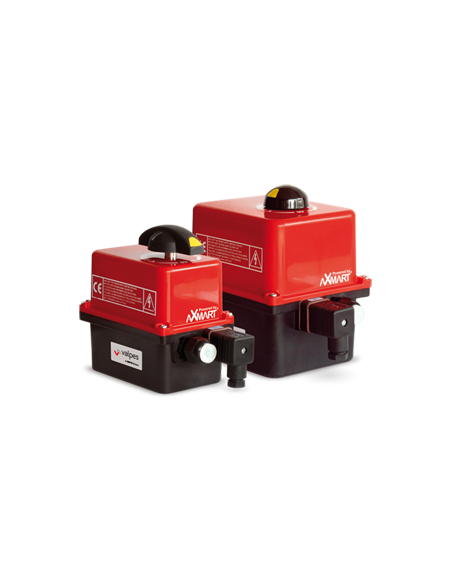

The Electric Actuator - ER PREMIER by Valpes is a robust 90° electric actuator designed for various industrial applications. It features a PA6 housing with a UL 94 V-0 rating and a secured manual override, suitable for torque ranges of 10-20-35-60-100Nm. This actuator complies with CE, ROHS, and REACH directives, ensuring safety and environmental standards. Available in standard and FASTSTOP versions, it offers multivoltage compatibility (100V to 240V AC and 24V AC/DC) and operates efficiently within a temperature range of -10°C to +55°C. The actuator is rated IP65 for protection against dust and water ingress and includes features like on-off or modulating control, adjustable limit switches, a modular position indicator, and a torque limiter. Its lightweight design (1Kg - 2.1Kg) and removable adaptation plates make it versatile for different mounting requirements.

Protection (Options)
  • IP 65
Voltage (Options)
  • 24V to 30V AC 50/60Hz
  • 100V to 240V AC 50/60Hz
  • 24V to 48V DC
  • 100V to 350V DC

Datasheet and documents

Description

DESCRIPTION

90° electric actuator, PA6 housing UL 94 V-0 with secured manual override for torques of 10-20-35-60-100Nm and in accordance with CE-ROHS-REACH Directives.

VERSIONS

  • Standard version: 90° - MULTIVOLT: operating time from 6s to 22s (without load)
  • FASTSTOP 10-20Nm version 12/24V AC/DC): operating time from 1.5s to 6s

TECHNICAL DATA

  • Duty rating S4 30% (IEC34)
  • Temperature: -10°C to +55°C
  • Enclosure: IP65
  • Weight: 1Kg - 2.1Kg
  • Multivoltage actuator:

          100V to 240V 50/60Hz (100V to 350V DC)

          24V 50/60Hz (24V DC)

  • On-off or 3 modulating points control
  • 4 adjustable limit switches 5A
  • Removable adaptation plates:

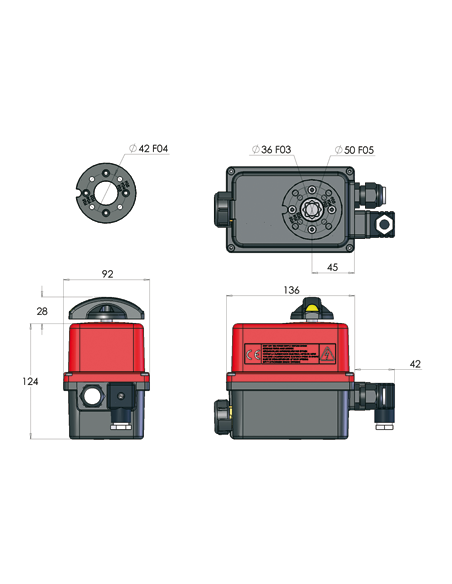

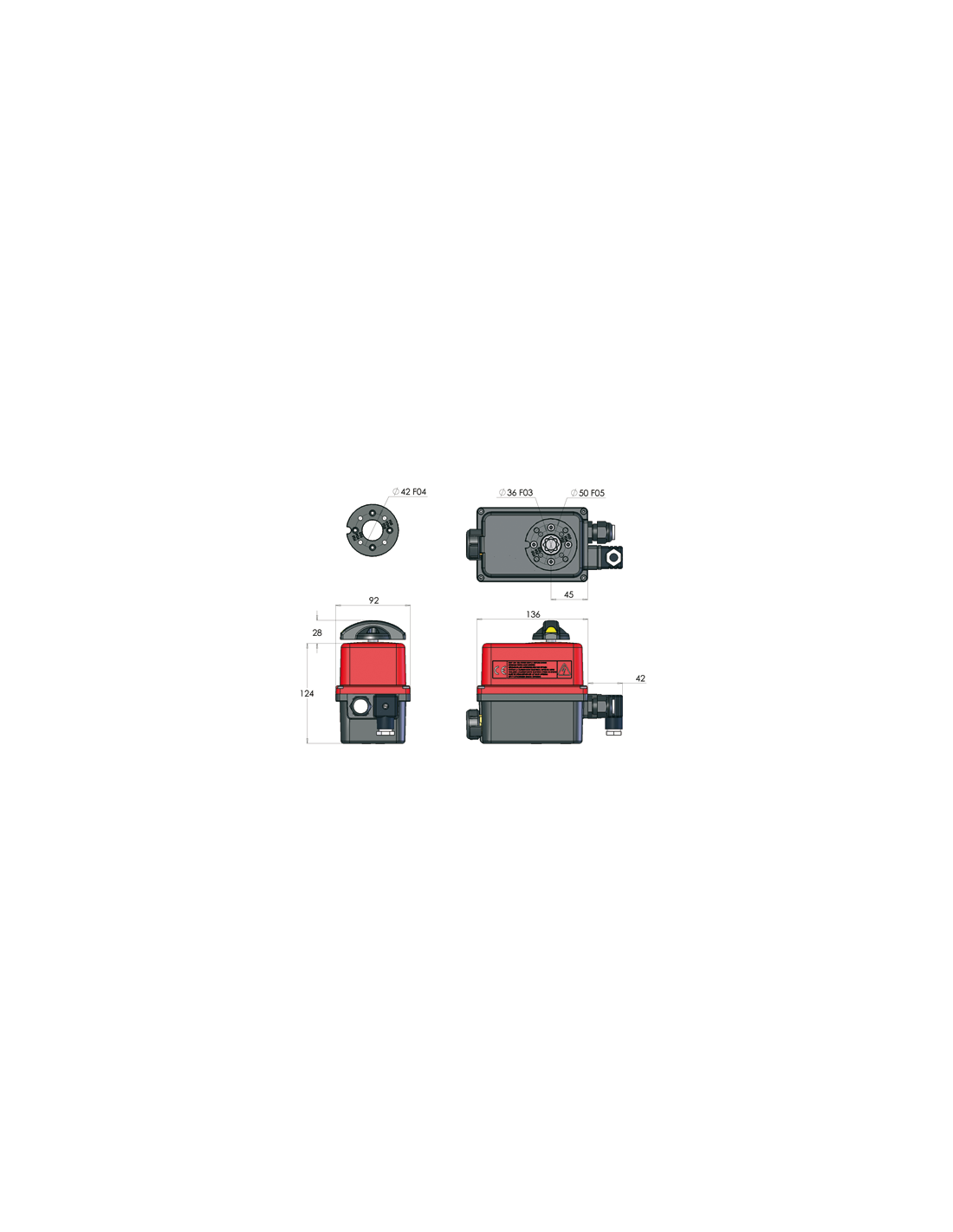

          ER 20Nm: F03-F04-F05

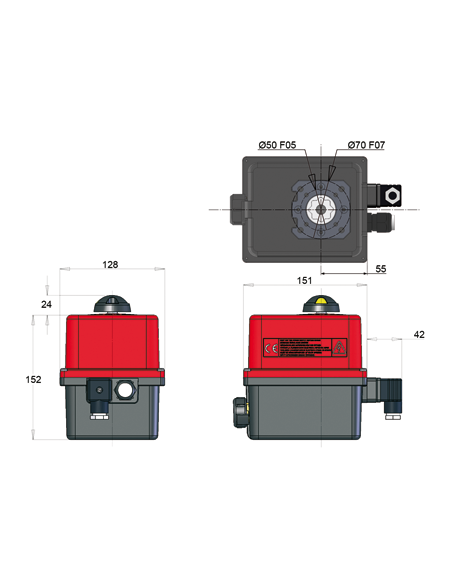

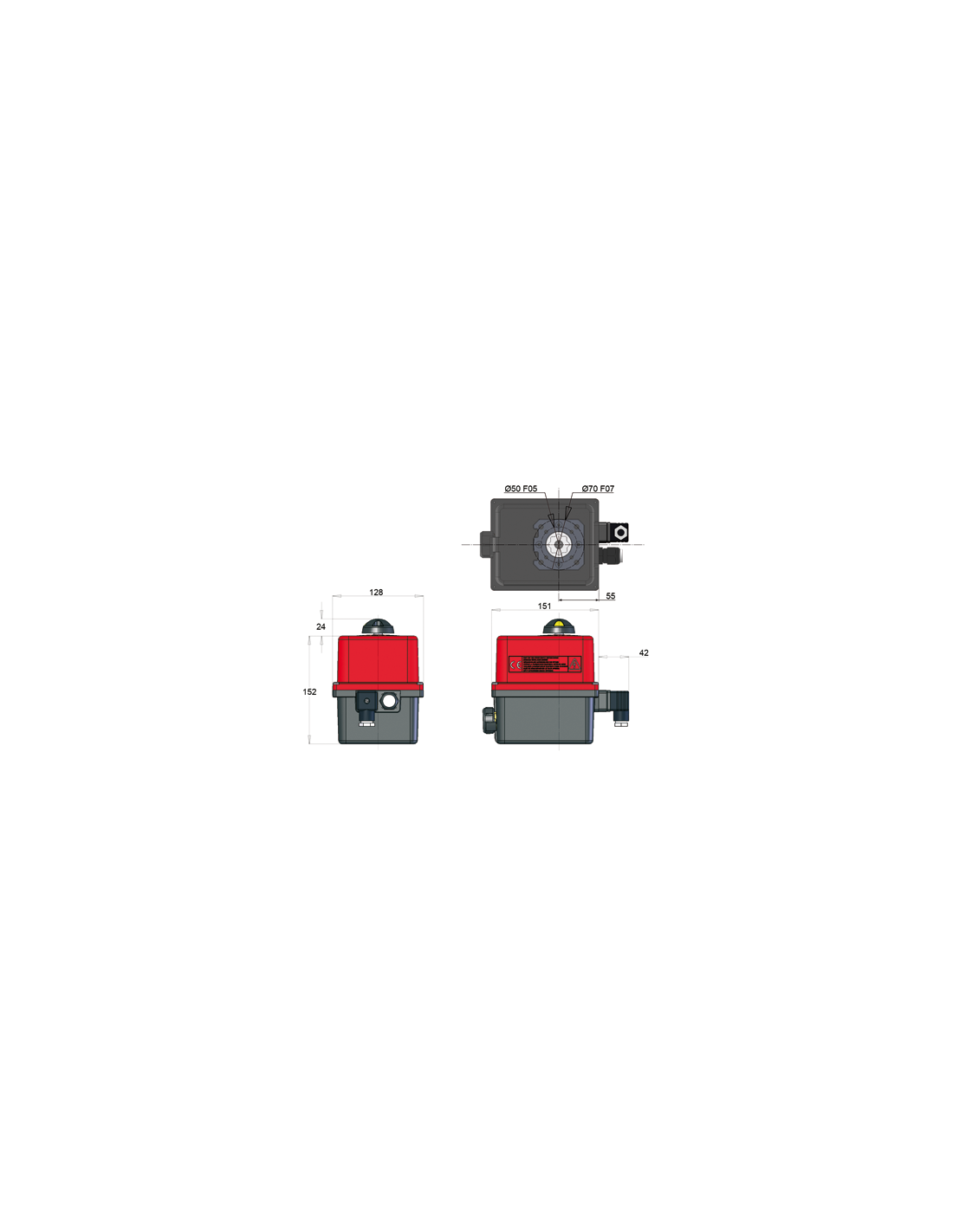

          ER 35-100Nm: F05-F07

  • Star drive nut
  • Secured manual override
  • Modular position indicator
  • Torque limiter monitored by polyswitch
  • Mechanical travel stops at 90°
  • 1x 3P+T DIN43650 connector + 1x ISO M20

couple-20-100.png    IP65.png
