The Electric Actuator - DV / DVX (ATEX) by Valpes is a robust and versatile actuator designed for shipbuilding applications. It features an aluminum housing and is approved by DNV-GL and ATEX, ensuring compliance with stringent safety standards. The actuator offers manual override via a hand wheel and provides torque ranging from 25 to 300Nm. It adheres to CE-ROHS-REACH Directives, ensuring environmental and safety compliance. Available in standard 90° and optional 180° or 270° versions, it is tailored for marine applications with a high-durability coating and a 15-year warranty. The actuator supports various functionalities, including emergency backup (BBPR), proportional control (POSI), and Modbus-RTU communication. It operates across a wide voltage range and features an IP68 enclosure, making it suitable for harsh environments. Additional features include a visual position indicator, regulated anticondensation heater, torque limiter, and RS485 connection. The actuator is lightweight at 6.4 kg and offers reliable performance with a duty rating of S4 50%.

Protection (Options)
  • IP 68
Voltage (Options)
  • 15V to 30V AC 50/60Hz
  • 24V to 30V AC 50/60Hz
  • 100V to 240V AC 50/60Hz
  • 12V to 48V DC
  • 24V to 48V DC
  • 100V to 350V DC

Description

DESCRIPTION

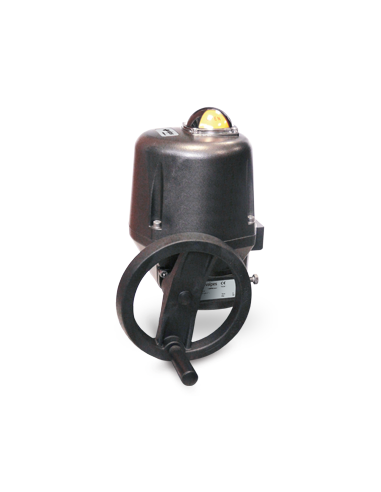

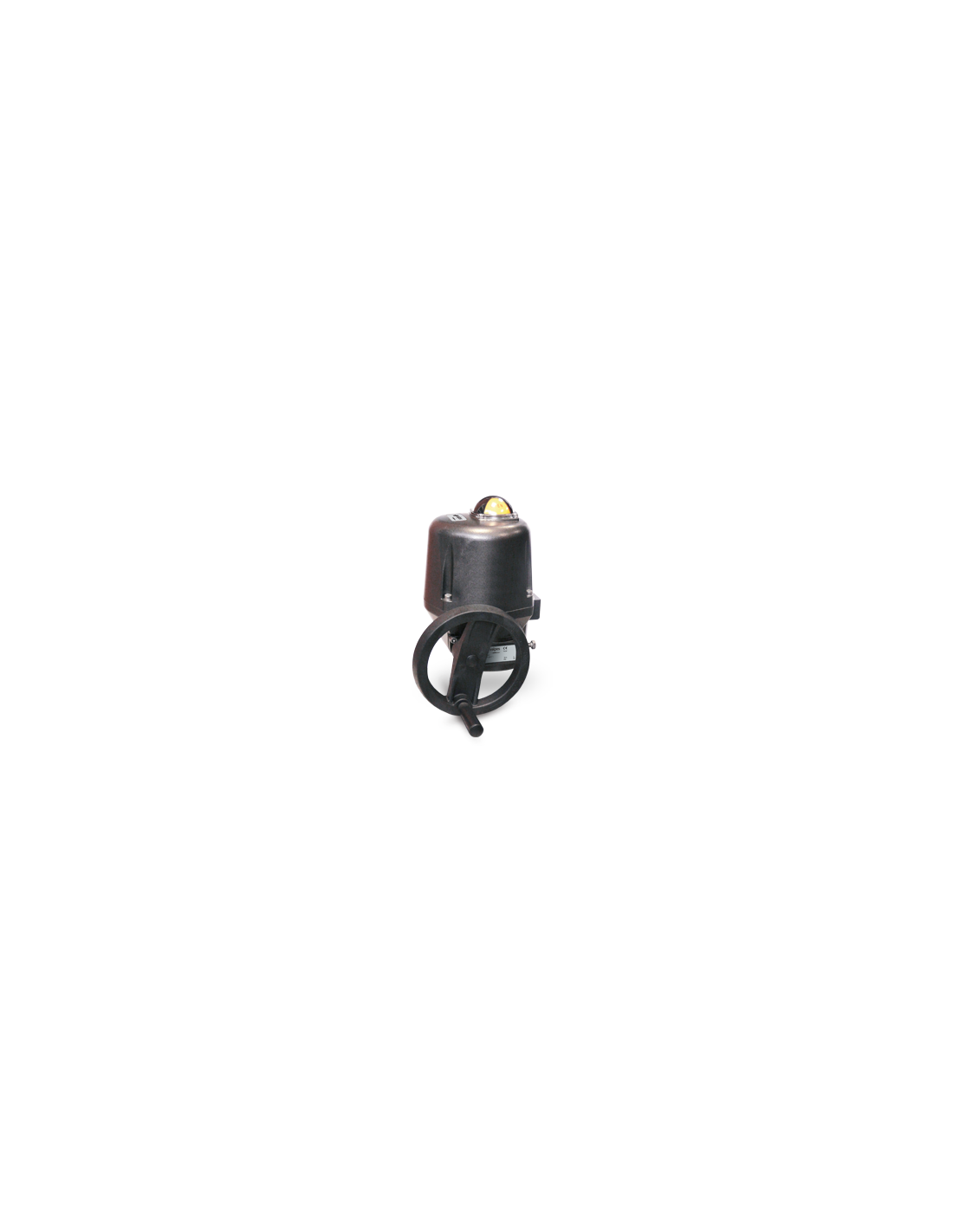

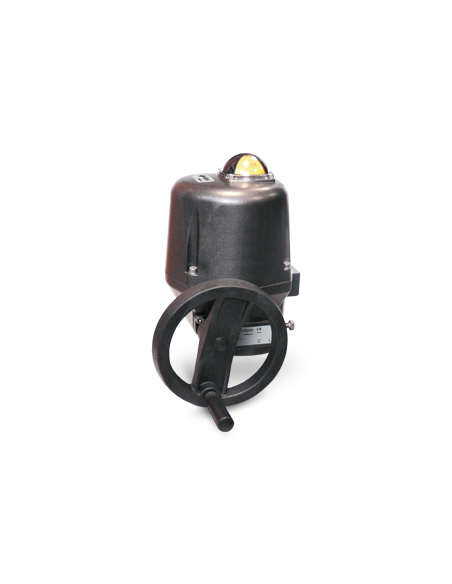

Electric actuator with aluminium housing, and DNV-GL and ATEX approval, designed for shipbuilding. Manual override by hand wheel and torques from 25 to 300Nm. Accordance with CE-ROHS-REACH Directives.

VERSIONS

  • 90° standard version and 180° or 270° version (on request)
  • Version for marine applications. High durability coating, 15-year warranty
  • Available with:

          BBPR - emergency backup

          POSI - proportional control

          3 POSITIONS

          POSI-BBPR

          3-POSITION-BBPR

          Modbus-RTU

LOCATION CLASSES

  • Temperature D
  • Humidity B
  • Vibration B
  • EMC A
  • Enclosure D

TECHNICAL DATA

  • Multivoltage actuator:

          100V to 240V 50/60Hz (100V to 350V DC)

          15V to 30V 50/60Hz (12V to 48V DC)

  • Enclosure IP68 10 m / 72 h
  • Duty rating: S4 50% (CEI34)
  • Working temperature: -20°C to +70°C
  • 3 modulating points control or on-off
  • 4 adjustable limit switches 5A

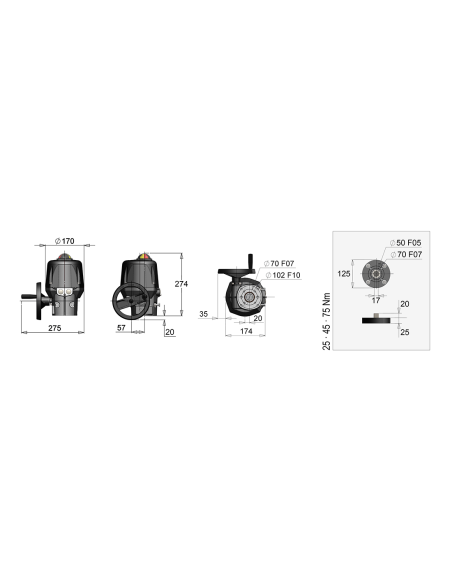

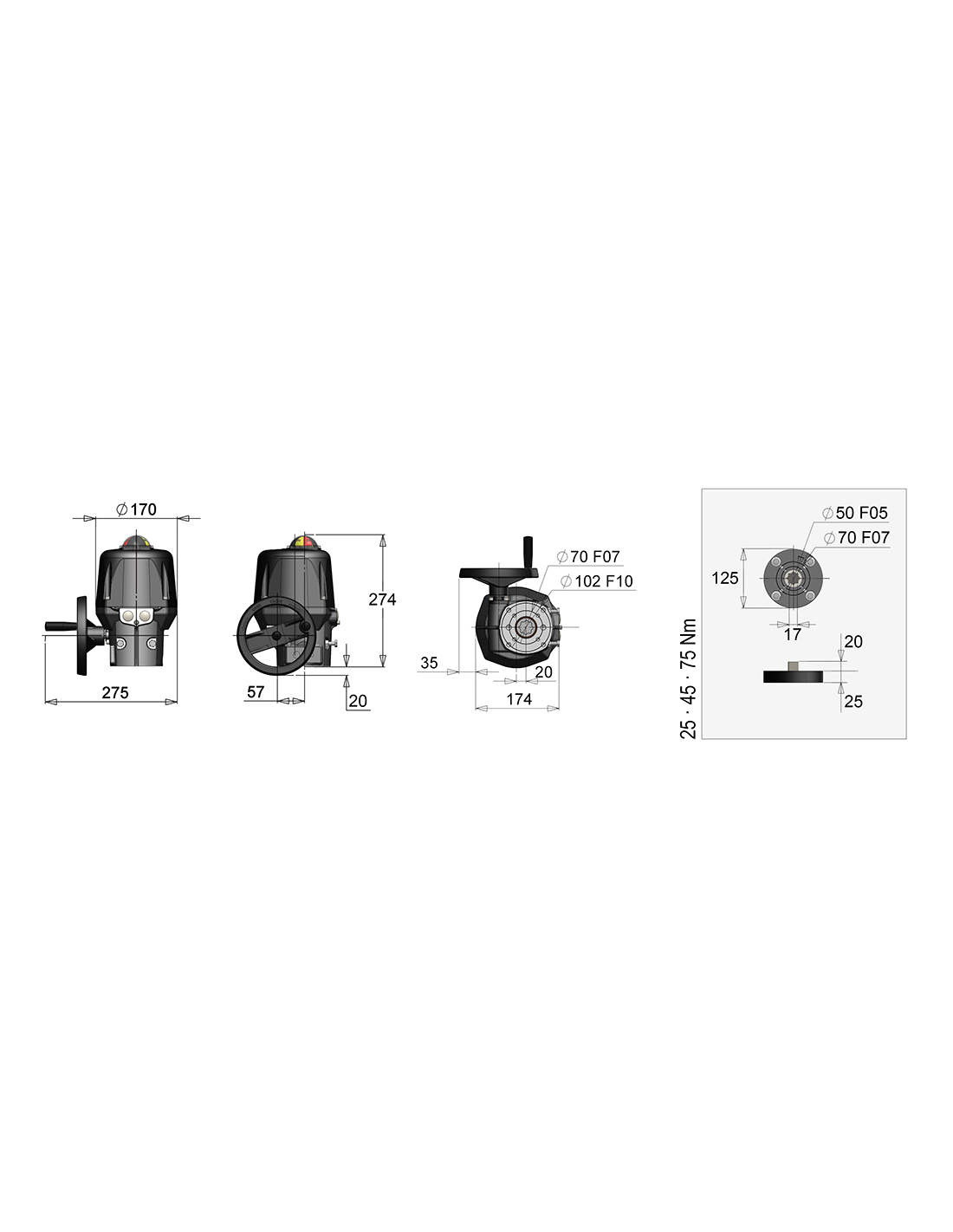

  • Connection according to ISO5211

          F05/F07 star 17 (25-75 Nm)

          F07/F10 star 22 (100-300 Nm)

  • Visual position indicator
  • Regulated anticondensation heater
  • Torque limiter monitored by software
  • Failure feedback relay (normal duty, failure)
  • RS485 connection
  • Mechanical limit stops
  • 2 ISO M20 (1/2" NPT adapters available as option)
  • Weight: 6.4 Kg
