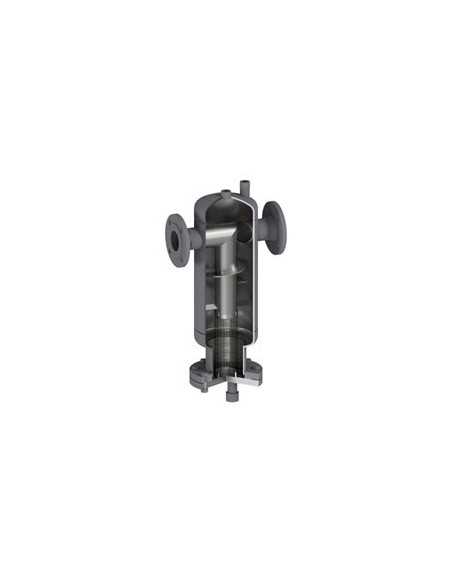

The AS series centrifugal air and dirt separators were designed to be used in the flow line of a hydronic heater or cooling system. The operation is based on the principle of centrifugal force, instead of relying on low-velocity separation, offering the advantage of efficient separation in a smaller vessel. The ADCA AS units provides maximum separation efficiency while minimizing space requirements.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • Carbon Steel
  • Stainless Steel
  • Galvanized Steel
Pressure Rating (Options)
  • PN 16
  • PN 40

Datasheet and documents

Description

MATERIAL

Carbon, zinc plated and stainless steel body

SIZES

11/4” to 2” – DN 32 to DN 300

CONNECTIONS

Threaded ISO 7 Rp
Flanged EN PN16 or PN40
Flanged ASME Class 150 or 300
Special flanges upon request

MAX. OPERATING PRESSURE

40 bar

MAX. OPERATING TEMPERATURE

300 ºC
