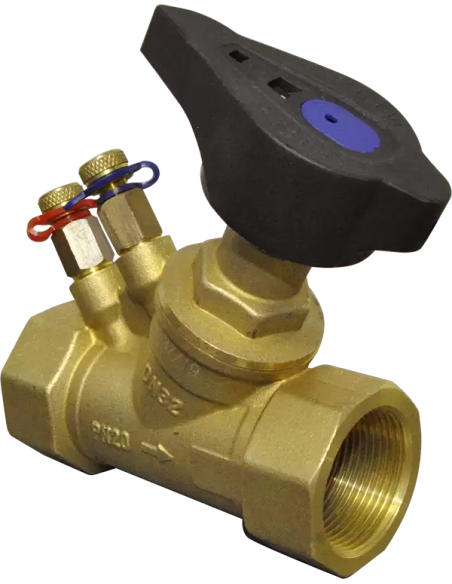

The Regulation Balancing Valve - Ekoflux SVO by Brandoni is a brass variable orifice threaded valve designed for balancing flow in heating or conditioning systems. It addresses irregularities in supply, reducing noise and potential damage to system components, thereby enhancing environmental comfort and optimizing energy consumption. The valve offers shut-off and measuring functions, with a continuous presetting feature to control pressure loss and flow rate. Suitable for installation on both supply and return piping, it is available in sizes ranging from DN ½” to 2”. An electronic instrument is available as an accessory for measuring differential pressure, flow rate, and circuit balancing.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • Brass CW 617N
Pressure Rating (Options)
  • PN 20
Seat (Options)
  • EPDM

Description

BRASS VARIABLE ORIFICE THREADED BALANCING VALVE

The valves in the series EKOFLUX SVO balance the flow in main circuits or single sections of heating or conditioning plants.

They allow correcting irregularities in the supply of the single users (irregularities which might cause noise and damage the components of the plant) and, as a result, improve environmental comfort and optimize energy consumption.

They perform shut-off and measuring functions.

The continuous presetting function allows controlling the loss of pressure and of the flow rate.

They can be installed indifferently on the supply piping and on the return piping.

Ekoflux SVO is a female/female threaded variable orifice balancing valve available in the dimension range of DN ½” – 2” .

Accessories

  • Electronic instrument for measuring the differential pressure, flow rate and balancing of the circuit.
