Showing 1313-1320 of 1971 item(s)

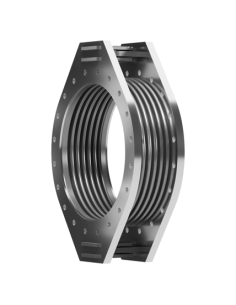

Expansion Joints - Type MFP | Macoga

Expansion Joins

Expansion Joints - Type MFP | Macoga

Expansion Joints - Type MFP | Macoga

These expansion joints are made of one single bellows element fitted with welding ends or flanges plus a system of articulated supports which allow for angular movement in one plane only. The hinge mechanism is designed to accept full pressure thrust. These units do not allow axial movement however, some types of hinge systems can be provided with holes...

View

Expansion Joints - Type MFT | Macoga

Expansion Joins

Expansion Joints - Type MFT | Macoga

Expansion Joints - Type MFT | Macoga

These expansion joints are made of one single bellows element with end connections plus a tie rod system. Regardless of accessories, such as liners and covers, this model absorbs all types of movements in any length of piping but it is mainly used to absorb axial movements and small amounts of lateral movement.

View

Expansion Joints - Type MFY | Macoga

Expansion Joins

Expansion Joints - Type MFY | Macoga

Expansion Joints - Type MFY | Macoga

This model is designed to absorb lateral and angular movements in only one plane. It is made up of two bellows joined together by a linking pipe and fitted with welding ends or flanges plus a double articulated system. The hinge mechanisms are designed to contain pressure thrust.

View

Expansion Joints - Type MJA | Macoga

Expansion Joins

Expansion Joints - Type MJA | Macoga

Expansion Joints - Type MJA | Macoga

Jacketed Expansion Joints are used in a set of particular circumstances such as when regular insulation is not sufficient and when the main fluid has to be kept at a fixed temperature or simply for security reasons. This model involves using two bellows, one on the inside and one on the outside.

View

Expansion Joints - Type MPBE Elbow pressure balanced | Macoga

Expansion Joins

Expansion Joints - Type MPBE Elbow pressure balanced | Macoga

Expansion Joints - Type MPBE Elbow pressure balanced | Macoga

A pressure balanced expansion joint accommodates axial and lateral movements and counteracts the bellows pressure thrust. An additional bellows is incorporated into the unit and is subject to the line pressure to generate a force equal and opposite to that on the main bellows. Tying these bellows together neutralises the pressure load on the unit. The...

View

Expansion Joints - Type MPBI Inline pressure balanced | Macoga

Expansion Joins

Expansion Joints - Type MPBI Inline pressure balanced | Macoga

Expansion Joints - Type MPBI Inline pressure balanced | Macoga

A pressure balanced expansion joint accommodates axial and lateral movements and counteracts the bellows pressure thrust. An additional bellows is incorporated into the unit and is subject to the line pressure to generate a force equal and opposite to that on the main bellows. Tying these bellows together neutralises the pressure load on the unit. The...

View

Expansion Joints - Type MQP | Macoga

Expansion Joins

Expansion Joints - Type MQP | Macoga

Expansion Joints - Type MQP | Macoga

These expansion joints are made of one single bellows element with end connections. Regardless of accessories, such as liners and covers, this model absorbs all of the movements in any one length of piping but it is mainly used to absorb axial movements. It does not restrain pressure thrust so adequate anchors and guides must be provided and they can be...

View

Expansion Joints - Type MRR | Macoga

Expansion Joins

Expansion Joints - Type MRR | Macoga

Expansion Joints - Type MRR | Macoga

This model is used in cases of high internal pressures and/or equalizing the movement among all the corrugations. The system involves the use of reinforcement or equalizing rings located around the outside of the convolution thus preventing the bellows being forced out of shape due to the high pressures. Equalizing and Reinforcing Rings are devices used...

View
