List of products by brand Corex

Corex – Technical profile of an industrial valve and flow control equipment brand

Corex is represented in industrial distribution with valve and piping products used in process utilities, water networks, compressed air, HVAC and general industrial installations. The brand’s technical relevance is connected with the exact product family selected for each application.

Typical product categories may include:

  • ball valves,
  • butterfly valves,
  • gate valves,
  • check valves,
  • strainers,
  • fittings and installation accessories.

Corex ball valves are generally used for quarter-turn On/Off isolation. Butterfly valves are used in water, HVAC, compressed air and utility systems where compact installation and low operating torque are required. Gate valves are used for full open or full closed isolation and should not be used for throttling. Check valves protect against reverse flow, while strainers protect pumps, control valves, meters and other downstream equipment.

Technical selection should define:

  • piping service,
  • pressure and temperature,
  • medium,
  • DN and connection type,
  • body and trim material,
  • seat or liner material,
  • leakage requirement,
  • installation position,
  • need for manual or actuated operation,
  • required certificates or declarations.

For engineers, Corex products should be evaluated at product-code level. Material, pressure class, temperature range and compatibility with the fluid must be confirmed before use in industrial service.

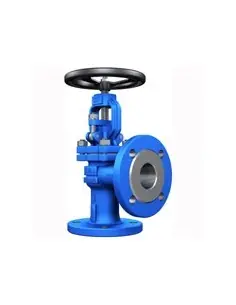

Globe valve Angle V30.1 | Corex | Philippopoulos s.a.

Globe valve Angle V30.1 | Corex

Globe valve Angle V30.1 | Corex
Corex
COREX V30.1 Angle Globe Valve The COREX V30.1 is a flanged angle globe valve with graphite packing, designed for flow isolation in water, hot water, steam, air, oils, and non-corrosive fluids without coarse mechanical impurities. The angle configuration is used when piping changes direction by 90° and requires simultaneous isolation. Versions and...
View

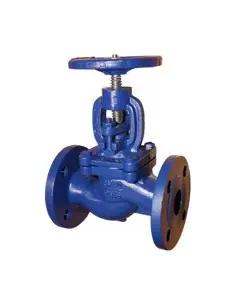

Globe valve V30.1 | Corex | Philippopoulos s.a.

Globe valve V30.1 | Corex

Globe valve V30.1 | Corex
Corex
COREX V30.1 Steam Valve with Packing The COREX V30.1 is a stop/globe valve featuring graphite packing, designed for flow isolation in water, steam, air, oil, and industrial fluid networks. Fluids should be free of coarse mechanical impurities, as particles can cause seat leakage or disc wear. Versions and Materials Cast Iron Version PN16: DN15–DN200,...
View
