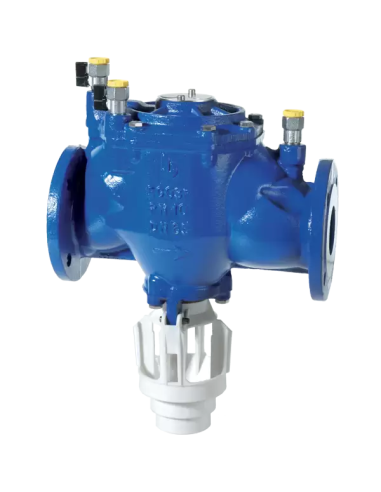

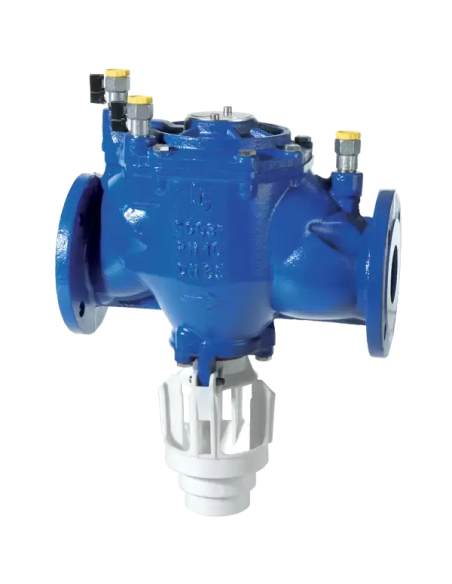

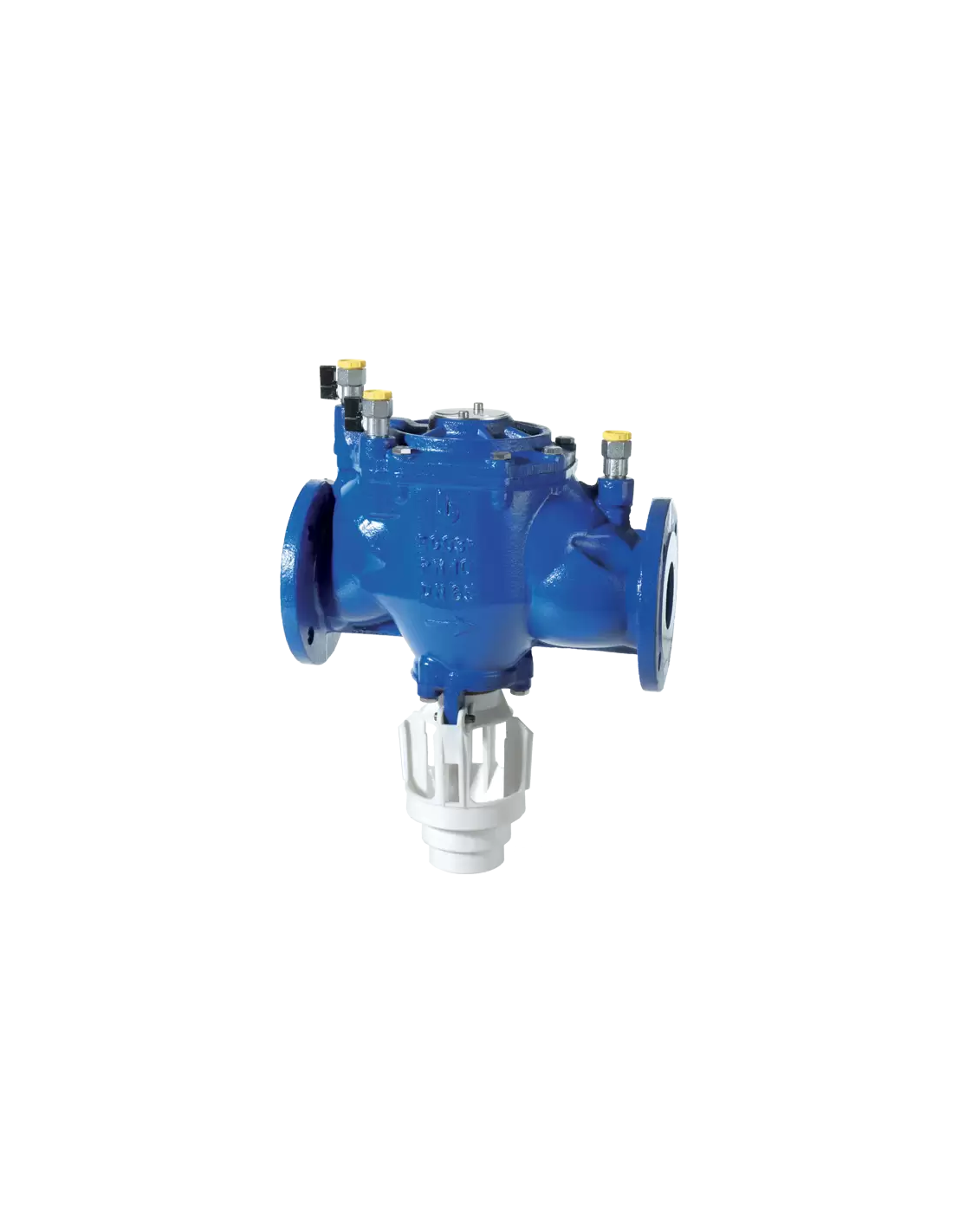

The ECO 3F Backflow Preventer by Brandoni is a flanged device designed to protect water systems from contamination due to backflow. It features a controllable reduced pressure zone and complies with EN12729 and EN1717 standards, ensuring high-quality manufacturing in line with EN ISO 9001. The device includes two spring check valves and a security valve to isolate the primary network from the user network during backflow events, which can occur due to siphoning or increased counter pressure. Suitable for water up to category 4, it is ideal for applications in washing machines, boilers, industrial plants, hospitals, and more. However, it is not suitable for category 5 water, which requires an air gap separation. The ECO 3F is also designed for firefighting networks with a service pressure of up to 12 bar. Accessories include the ECO3 TEST control instrument and a pre-assembled unit.

Standard (Options)

Connection (Options)

Flanged

Material (Options)

EN-GJL-250

Pressure Rating (Options)

PN 10

Datasheet and documents

Description

FLANGED BACK FLOW PREVENTER WITH CONTROLLABLE REDUCED PRESSURE ZONE

The ECO 3F flanged backflow preventers, which have a controllable reduced pressure zone, type BA EN1717, are approved in conformity with EN12729 and are manufactured in accordance with the most severe product norms and in conformity with the quality requirements of EN ISO 9001.

They consist of 2 spring check valves and a chamber situated between the spring check valves that contain a security valve, which in the event of “backflow”, isolates the primary network from the user network.

The backflow might be caused by siphoning (the entry pressure decreases due to ruptures in the piping upstream, the water supply is interrupted, partially draining parts of the piping, as a result of the events upstream) or by increasing counter pressure (the pressure of the user network is higher than the pressure in the primary network due to overpressure caused, for example, by incoming water pumped from a private water well).

Backflow preventers are indispensable to prevent contamination of the distribution network of the drinking water from entering from connected user units (for example, washing machines, boilers, industrial plants, hospitals, laboratories, fire fighting plants).

Backflow preventers BA type assure protection, in case of backflow, against the risk of pollution for types of water up to category 4, according reference standard EN1717.

They are not suitable for water of category 5 (fluid presenting a human health hazard due to the presence of microbiological or viral elements); in this case an air gap separation must be used For correct installation, it is necessary to install a filter upstream with respect to the backflow preventer, in order to prevent problems caused by dirt and residual parts present in the piping, such as shut-off valves upstream and downstream with respect to the backflow preventer.

Series ECO3F backflow preventer, even if marked PN10 complying with reference normative EN12729, due to its design and testing characteristics is suitable for installation in firefighting networks with service pressure of 12 bar.
