Gate valve PN-16 NPT thread - 2220N | Genebre

Name: Gate valve PN-16 NPT thread - 2220N | Genebre
Brand: Genebre
SKU: Gate valve PN-16 NPT thread - 2220N | Genebre

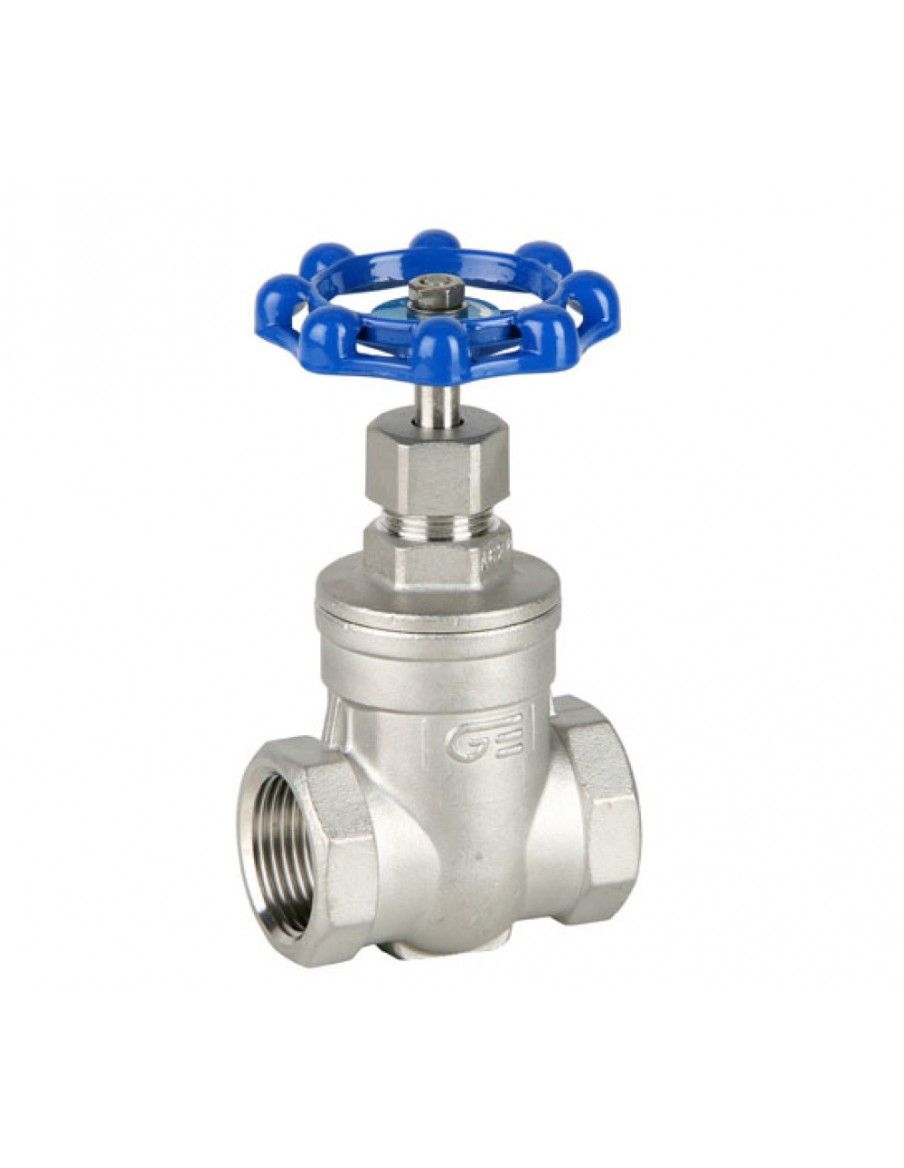

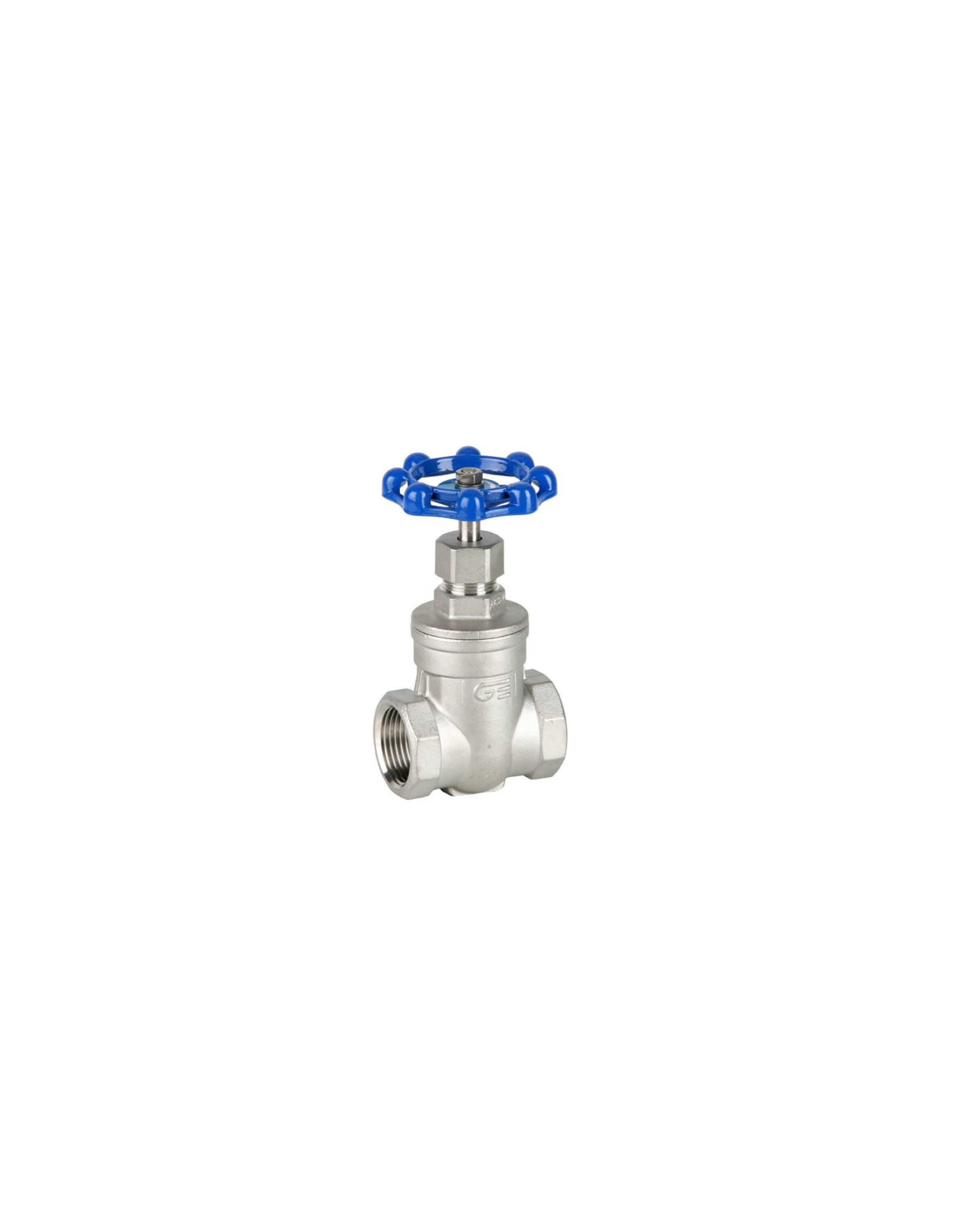

The Gate Valve PN-16 NPT Thread - 2220N by Genebre is a high-quality valve designed for efficient flow control in various industrial applications. It features a robust construction suitable for handling pressures up to PN-16. The valve is equipped with NPT threading, ensuring a secure and reliable connection. Its design allows for minimal pressure drop and provides a tight seal when closed, making it ideal for on/off applications. The 2220N model is known for its durability, ease of operation, and maintenance, making it a reliable choice for professionals in the field.

Standard (Options)

Connection (Options)

Material (Options)

1.4408

Pressure Rating (Options)

PN 16

Seat (Options)

PTFE

Datasheet and documents

Description

Constr. stainless steel CF8M (316) investment casting.

Gasket: PTFE: NPT threaded ends.

Max. pressure: 16 BAR at 120ºC - 10 BAR at 180ºC.

Minimum temp.: -30ºC.

230 Psi at 248ºF

145 Psi at 356ºF

Reference: 2220N

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2220N 04	GATE VALVE PN16 NPT 1/2"	1	0.419	6/48
2220N 05	GATE VALVE PN16 NPT 3/4"	1	0.553	4/32
2220N 06	GATE VALVE PN 16 NPT 1"	1	0.713	2/18
2220N 07	GATE VALVE PN 16 NPT 1 1/4"	1	0.995	2/16
2220N 08	GATE VALVE PN16 NPT 1 1/2"	1	1.531	1/8
2220N 09	GATE VALVE PN16 NPT 2"	1	2.132	1/6

Certificates

GENEBRE, S.A. has implemented a quality management system to control the designing and manufacturing of fluid control valves, as well as the distribution of home and public taps.

This system complies with the requirements of the current international UNE-EN-ISO 9001:2015, certified by the prestigious German certification organization TÜV Rheinland.

In 2000, GENEBRE began to comply with the European Business Excellence Model, more commonly known as the EFQM. As a result, in 2003, the Catalan Regional Government awarded us with the Quality Award. This new system enables us to ensure the quality of GENEBRE's products and also to offer added value to our clients.

In 2012, we obtained the certification for the Environmental Management System. This system is certified according to the UNE-EN-ISO 14001:2015, also by TÜV Rheinland. GENEBRE QUALITY AND ENVIRONMENTAL POLICY

	AENOR - Homologación y Marcado N de AENOR para la línea de válvulas de gas.
	OLIVER RODÉS Water Quality - Certificados de agua potable, confirmando el cumplimiento de los criterios sanitarios de la calidad del agua para el conusmo humano RD 140/2003 de 07 de febrero (legislación española) y Directiva (UE) 2020/2184 del Parlamento Europeo y del Consejo de 16 de diciembre de 2020, relativa a la calidad de las aguas destinadas al consumo humano por el Laboratorio Oliver Rodés.
	HOMOLOGACIÓN CE - Homologación CE y otras específicas para mercados como Bielorrusia, Chile, Polonia, Rusia, Ucrania, Singapur y Arabia Saudí.
	NORMA UNE-EN-ISO 9001 - Este sistema está certificado de acuerdo a la norma UNE-EN-ISO 9001: 2015, por parte del prestigioso organismo certificador alemán TÜV Rheinland..
