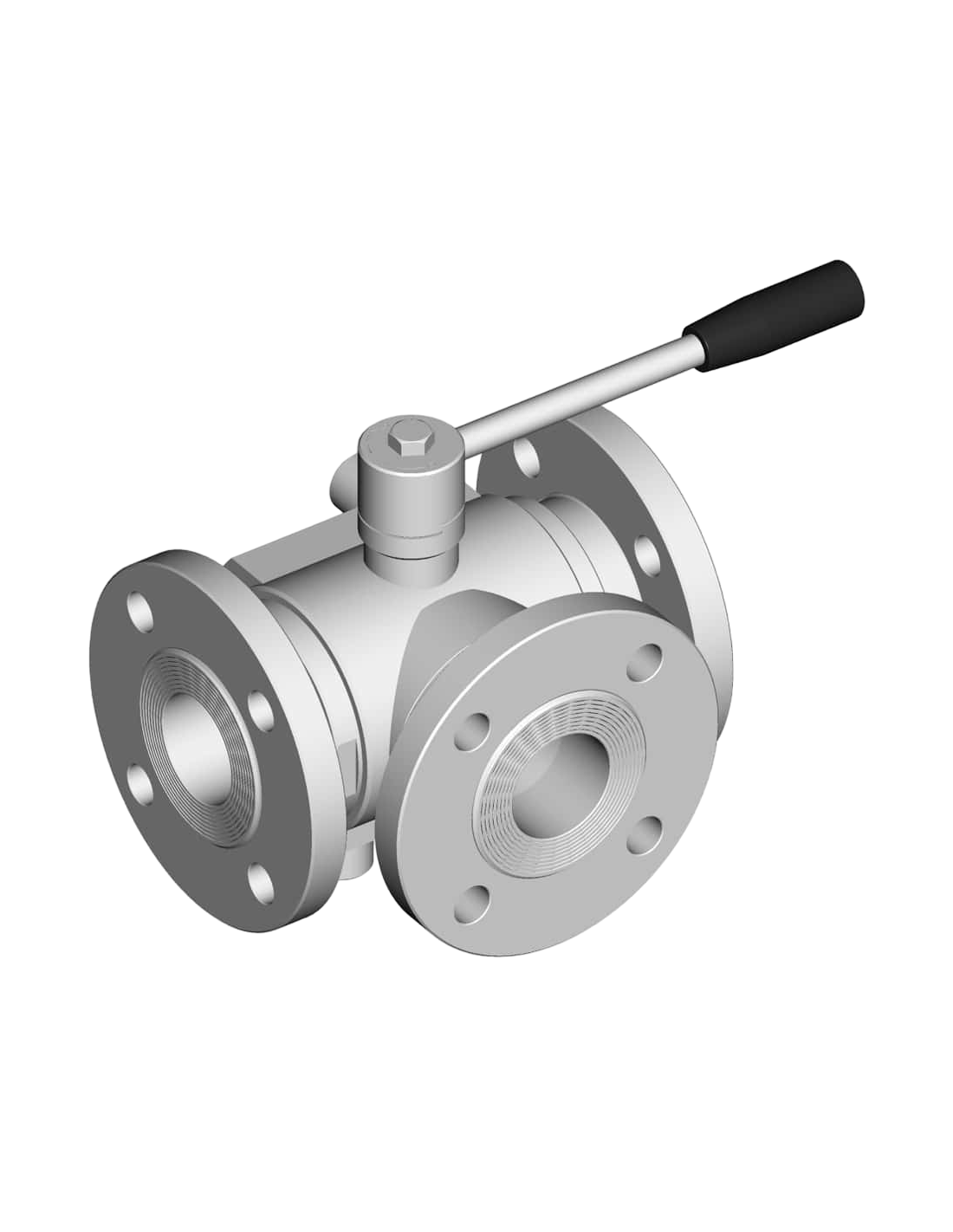

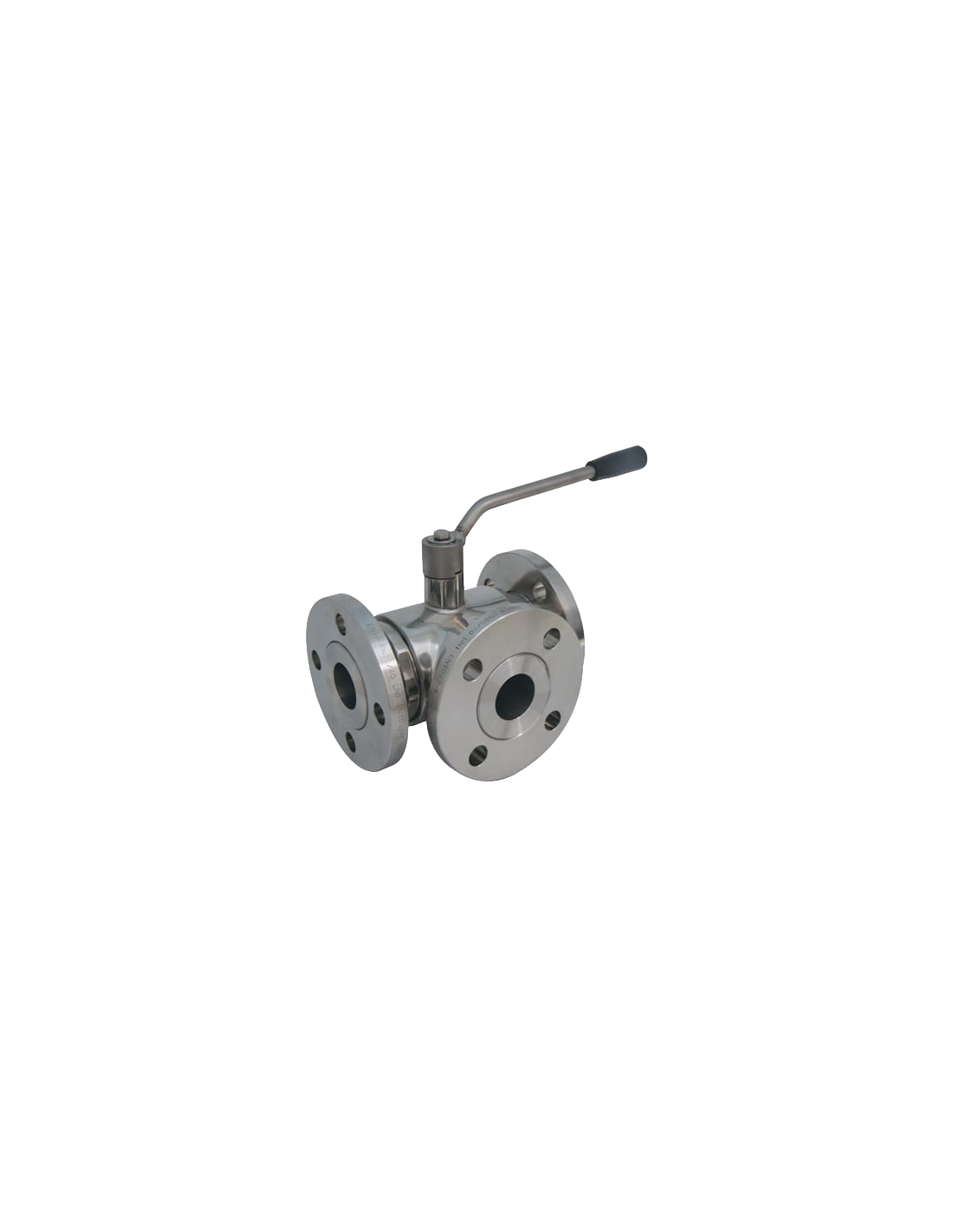

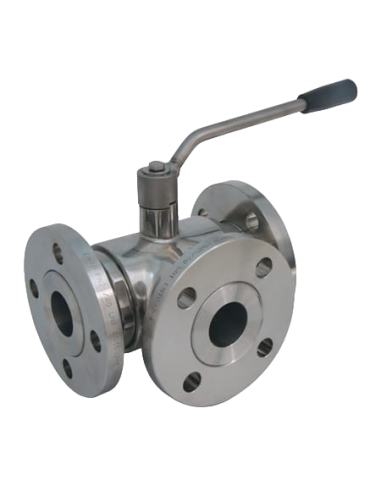

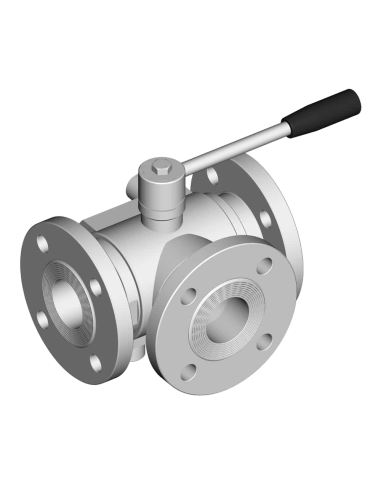

The 3 Way (T) Ball Valve by 4G Ghidini is a versatile valve designed for efficient flow control in various industrial applications. It features a "T" port configuration with four seals and is available with an optional heating jacket. The valve is operated using an inox lever and connects via revolving threaded flanges compliant with UNI EN 1092-1 standards. It supports both full and reduced flow and is constructed from durable Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel. The valve is available in sizes ranging from DN10 to DN125 and is equipped with modified virgin P.T.F.E. seals, suitable for operating temperatures between -20°C and +170°C. The outer finish is polished for enhanced durability and aesthetics. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges, such as PTFE with glass, carbographite, inox, and UHMW polyethylene. The valve also meets M.O.C.A. CE 1935/2004 regulations for materials in contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • Revolving Threaded Flanges
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T” port / THREE-way ball valve 4 seals with “T” port with HEATING JACKET

Drive: Inox lever

Connection: Revolving threaded flanges UNI EN 1092-1

Flow: Full and reduced

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN10 to DN125

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
