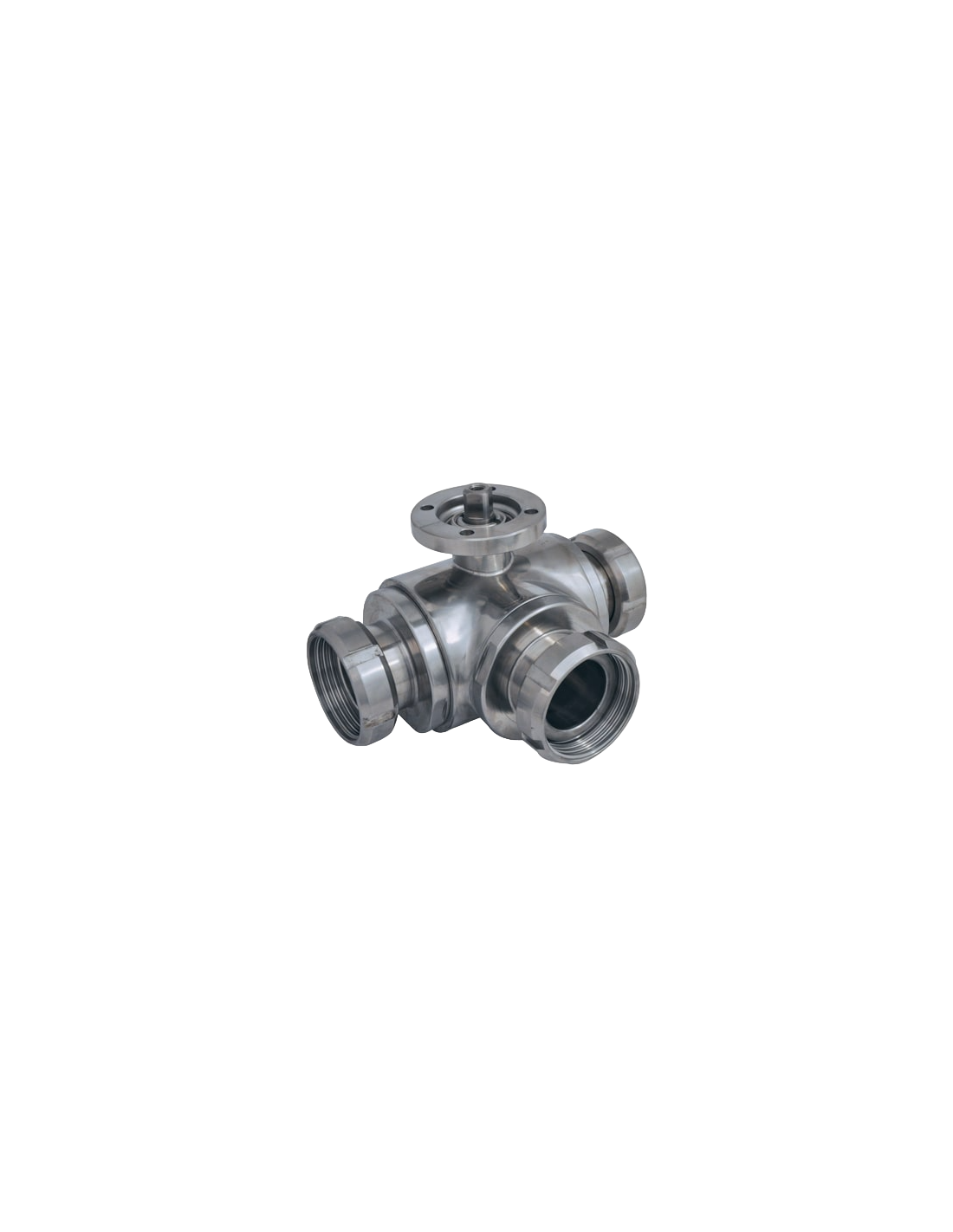

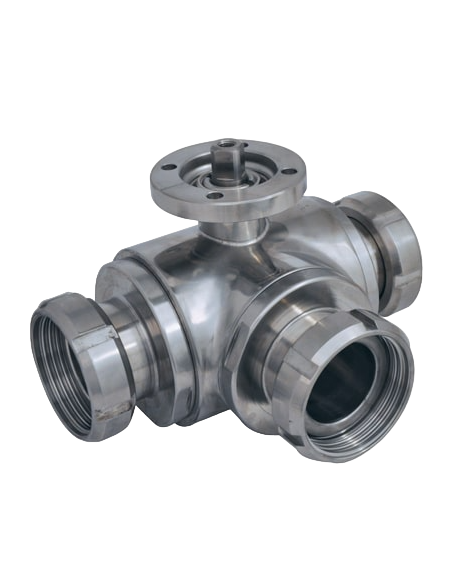

The 3 Way (T) Ball Valve by 4G Ghidini, model 303046, is a versatile valve designed for efficient fluid control. It features a three-way configuration with a "T" port and is equipped with four standard seals made from modified virgin PTFE, ensuring reliable performance across a wide temperature range of -20°C to +170°C. The valve is constructed from high-quality AISI 304L and AISI 316L stainless steel, offering durability and corrosion resistance. It supports full flow and is compatible with SMS male/male/male connections. The valve is designed for easy integration with actuators, adhering to ISO 5211 and DIN 3337 standards. Available in sizes from DN20 to DN100, it boasts a polished outer finish for enhanced aesthetics and hygiene. Optional features include an antistatic device compliant with ATEX standards and various seal materials for specific applications, such as PTFE with glass, carbographite, or inox, and UHMW polyethylene.
Standard (Options)
  • DIN
Connection (Options)
  • SMS
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T”

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: SMS male/male/male

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN20 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C +170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
