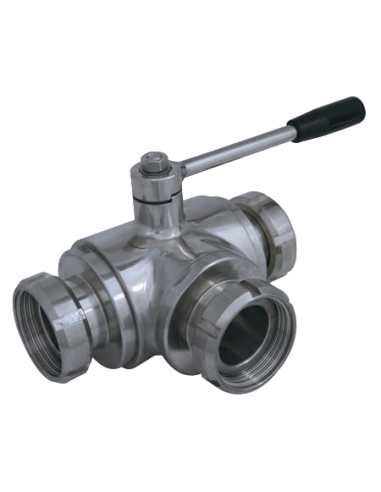

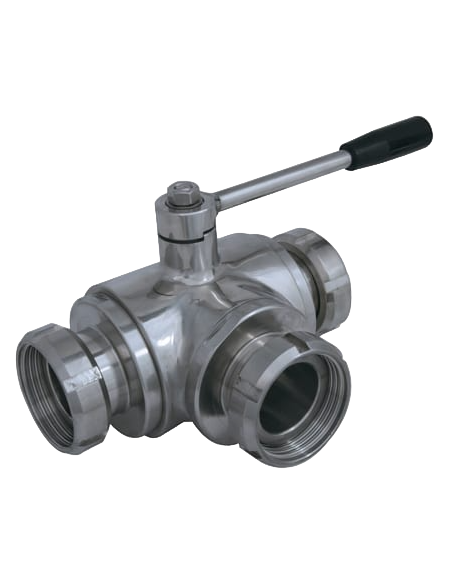

The 3 Way (T) Ball Valve by 4G Ghidini, model 300146, is a versatile valve designed for efficient fluid control. It features a "T" port configuration and is equipped with four standard seals made from Modified Virgin P.T.F.E., ensuring reliable performance. The valve is operated using an inox lever and connects via SMS male/male/male fittings. Constructed from high-quality Aisi 304L and Aisi 316L stainless steel, it offers full flow capabilities and is available in sizes ranging from DN20 to DN100. The valve can operate within a temperature range of -20°C to +170°C and boasts a polished outer finish. Optional features include an antistatic device compliant with ATEX standards and various seal materials for specific temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • SMS
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T” port

Drive: Inox lever

Connection: SMS male/male/male

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN20 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
