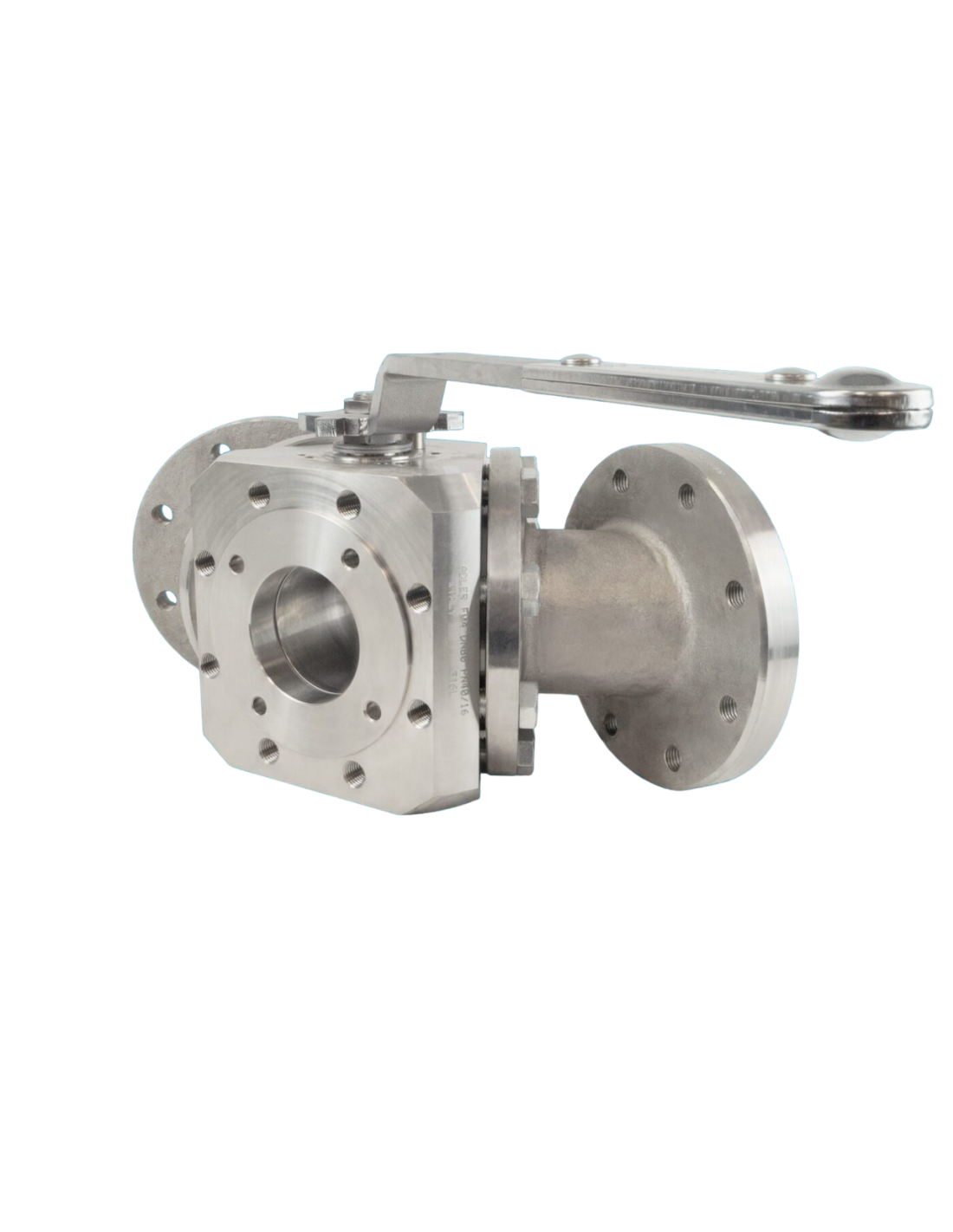

The 3 Way Ball Valve - FV4 by ADLER is a versatile, full bore, 90° wafer type valve designed for efficient fluid control. It is crafted from either round bar or casted materials, adhering to standards such as EN 12516.2, ASME B16.34, and ISO 14313. Available in sizes ranging from DN 40 to DN 200, the valve is offered in carbon steel, stainless steel, and special steel, with a pressure rating of PN 10÷40 / ANSI 150, and options for ANSI 300/600 upon request. Key features include a chevron ring on the stem, anti blow-out proof stem, and an antistatic device. The valve is compliant with various directives and standards, including PED, TPED, ATEX, and is certified for fire safety, fugitive emissions, and safety system S.I.L. 3. Additional options include PTFE seats, cryogenic capabilities, stem extension, and various actuation and control accessories. Each valve undergoes rigorous testing, including 100% air testing under water at 100 psi, ensuring reliability and performance in demanding applications.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A105N
  • ASTM A351 CF8M
  • ASTM A479 Type 316
  • ASTM A479 Type 316L
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE
  • RPTFE

Datasheet and documents

Description

Three way 90° ball valve “wafer type”, full bore, manufactured from round bar or casted according to EN 12516.2; ASME B16.34, ISO 14313

Patented n° 00219616.

Available size from DN 40 to DN 200 in carbon steel, stainless steel and special steel

Rating PN 10÷40 / ANSI 150 (On request available ANSI 300/600).

Chevron ring on stem.

On request:

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– according to  PED 14/68/UE directive

– according to TPED 2010/35/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 for oxigen serivce

– certified in safety  system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE seats filled glass – carbon – S.S. – bronze, metal core

cryogenic valves

stem extention

oval handle

pneumatic actuator double/single acting

electric motor

manual gear box

electric-pneumatic limit switches/solenoid valves

Certificates

– certified in safety  system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
