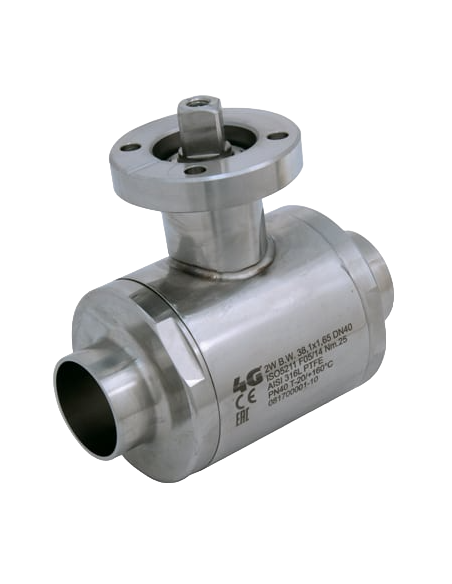

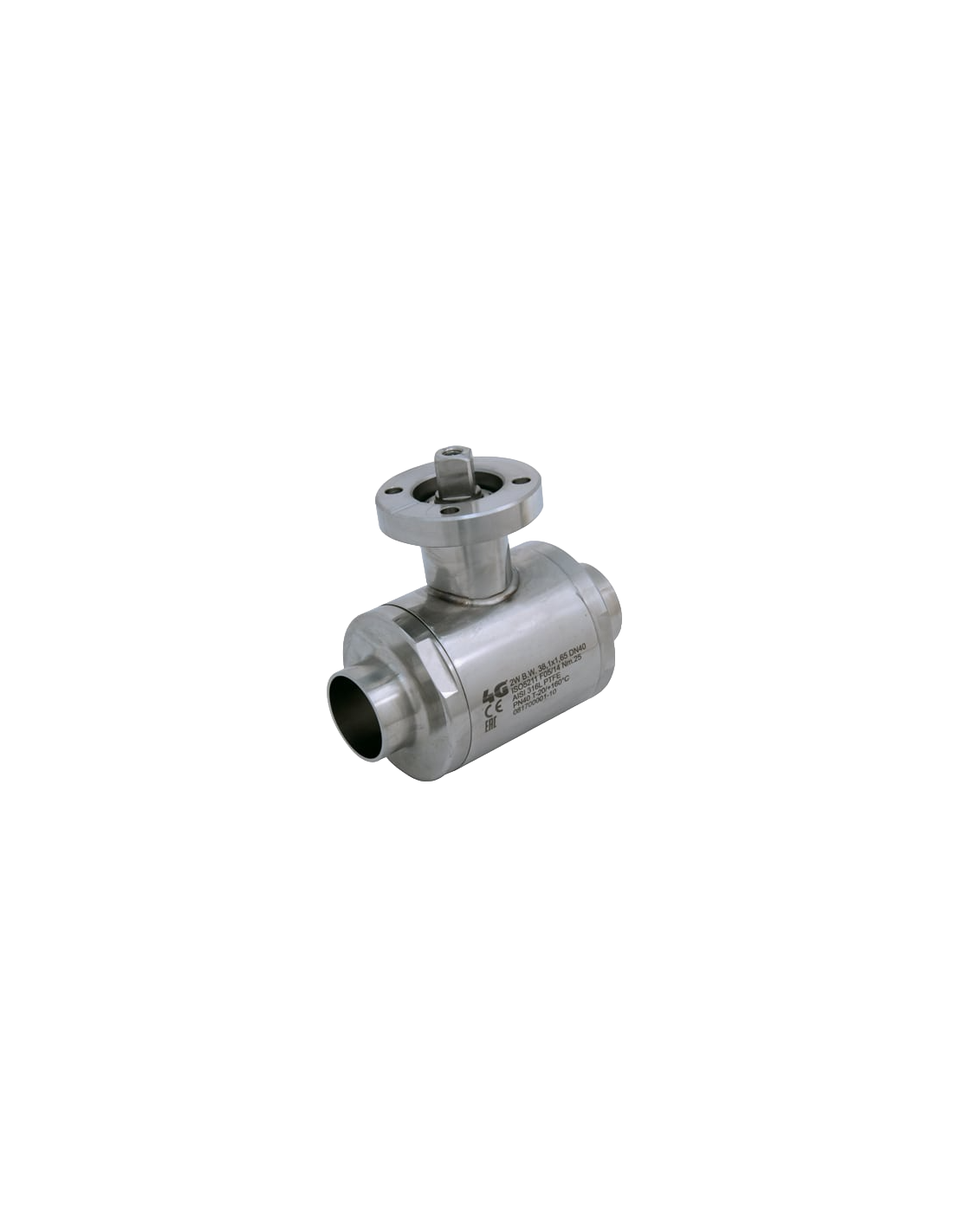

The Ball Valve STANDARD SEALS BUTT-WELDING - 103042 by 4G Ghidini is a high-quality two-way ball valve designed for efficient fluid control. It features a drive system compatible with ISO 5211 and DIN 3337 flanges for easy actuator mounting. The valve supports butt-welding connections according to BS-OD (ASTM A-270), DIN 11850, and ISO 1127 standards, ensuring versatile installation options. Constructed from durable AISI 316L (1.4404) stainless steel, it offers full flow capabilities and is available in sizes ranging from DN10 to DN100. The valve is equipped with modified virgin P.T.F.E. seals, suitable for operating temperatures between -20°C and +170°C. Its polished outer finish enhances durability and appearance. The package includes screws for actuator mounting. Optional features include an antistatic device compliant with ATEX standards and various seal materials for specific temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • Butt Weld
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection:

  • Butt-welding in according to BS-OD (ASTM A-270)
  • Butt-welding in according to DIN 11850
  • Butt-welding in according to ISO 1127

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN10 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
