Θερμοστάτες
Applications
- compressed air
- cooling
- demi Water
- heating
- solar energy
- steam

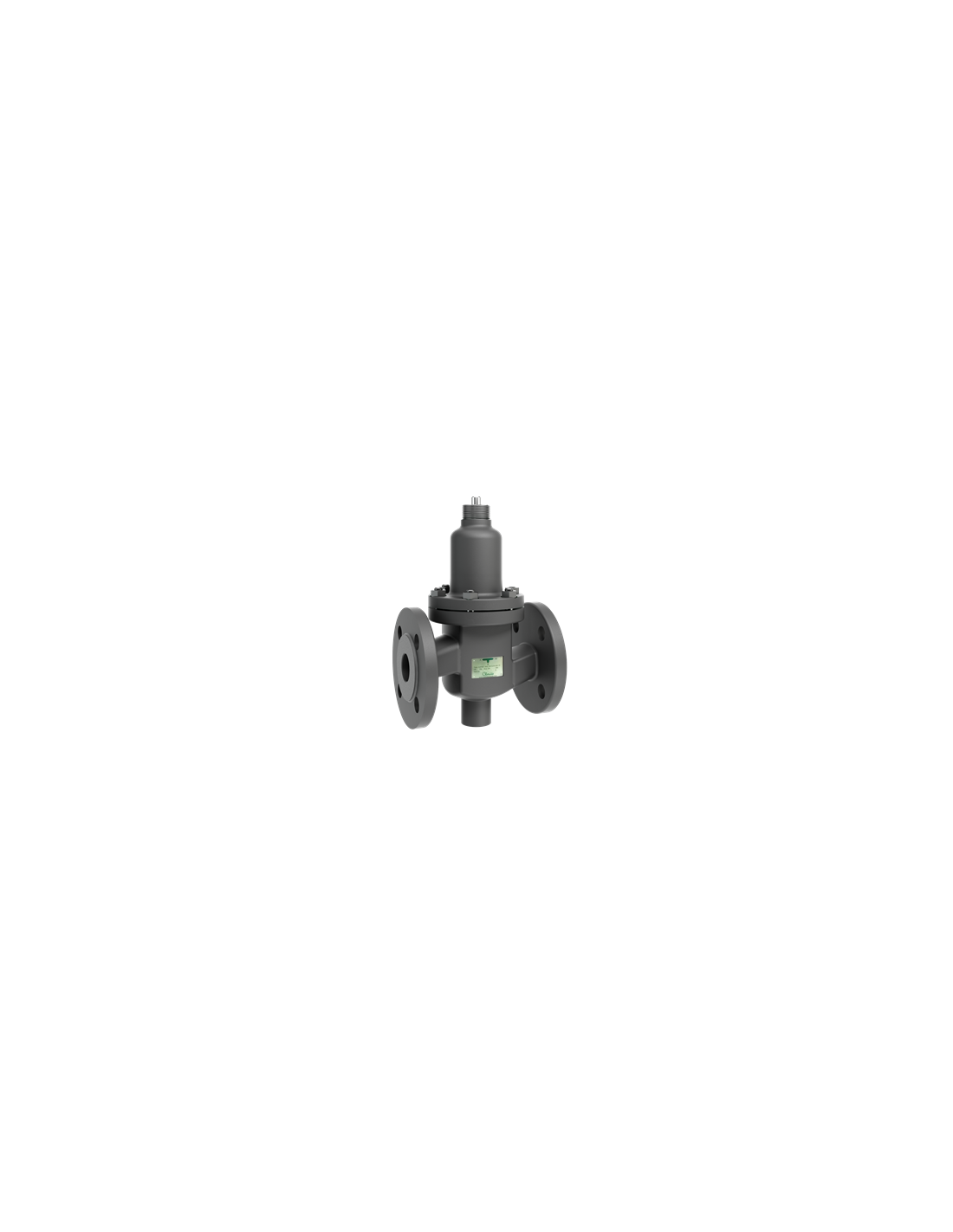

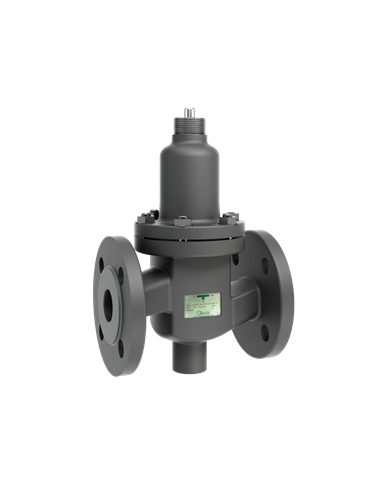

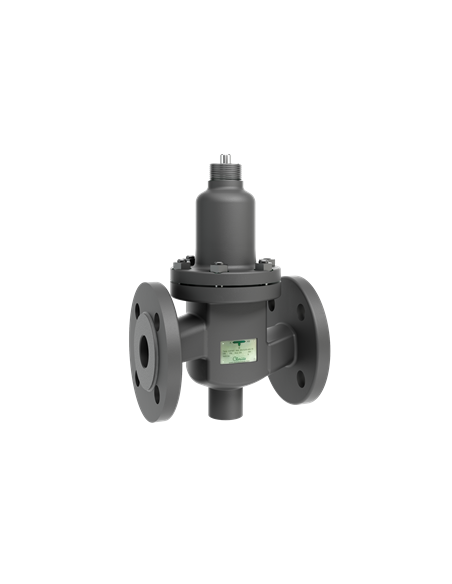

Art. No. | Description | Size | Item weight | PN | Type of connection |
|---|---|---|---|---|---|
| 1-2310473 | VALVE H1FB DN25, EN FLANGES | DN25 | 6.0 KGM | PN 40 | Flange |
| 1-2310473R | VALVE H1FB DN25 | 6.0 KGM | PN 40 | Flange | |
| 1-2310481 | VALVE H1FB DN32, EN FLANGES | DN32 | 9.0 KGM | PN 40 | Flange |
| 1-2310481R | VALVE H1FB DN32 REVAMPED | 9.0 KGM | PN 40 | Flange | |
| 1-2310483 | VALVE H1FB DN32, DIN2512 FORM F | 9.0 KGM | PN 40 | Flange | |
| 1-2310503 | VALVE H1FB DN40, EN FLANGES | DN40 | 13.0 KGM | PN 40 | Flange |
| 1-2310503R | VALVE H1FB DN40 REVAMPED | 13.0 KGM | PN 40 | Flange | |
| 1-2310506 | VALVE H1FB DN40, DIN2512 FORM F | 13.0 KGM | PN 40 | Flange | |
| 1-2310511 | VALVE H1FB DN50, EN FLANGES | DN50 | 16.0 KGM | PN 40 | Flange |
| 1-2310515 | VALVE H1FB DN50, DIN2512 FORM F | 16.0 KGM | PN 40 | Flange | |
| 1-2310538 | VALVE H1FB DN65, EN FLANGES | DN65 | 23.0 KGM | PN 40 | Flange |
| 1-2310546 | VALVE H1FB DN80, EN FLANGES | DN80 | 38.0 KGM | PN 40 | Flange |
| 1-2311755 | VALVE H1FB DN50 ANSI 150 | 16.0 KGM | Class 150 | ANSI flange | |
| 1-2991827 | PACKING SET - H1FB DN50 | 3.0 KGM | PN 40 |
Art. No. | Size | d | L | H1 | H |
|---|---|---|---|---|---|
| 1-2310473 | DN25 | 1" (DN25) | 160.0 | 70.0 | 180.0 |
| 1-2310473R | 1" (DN25) | ||||
| 1-2310481 | DN32 | 1 1/4" (DN32) | 180.0 | 75.0 | 195.0 |
| 1-2310481R | 1 1/4" (DN32) | ||||
| 1-2310483 | 1 1/4" (DN32) | ||||
| 1-2310503 | DN40 | 1 1/2" (DN40) | 200.0 | 85.0 | 205.0 |
| 1-2310503R | 1 1/2" (DN40) | ||||
| 1-2310506 | 1 1/2" (DN40) | ||||
| 1-2310511 | DN50 | 2" (DN50) | 230.0 | 95.0 | 225.0 |
| 1-2310515 | 2" (DN50) | ||||
| 1-2310538 | DN65 | 2 1/2" (DN65) | 290.0 | 110.0 | 260.0 |
| 1-2310546 | DN80 | 3" (DN80) | 310.0 | 115.0 | 275.0 |
| 1-2311755 | DN50 | ||||
| 1-2991827 | DN50 |
Characteristics
| Manufacturer | 5705737000006 |
